GM TH350, TH400, 700R4, 4L60E Trans Cooler Kit w/Fan & Fragola Lines/Fittings

  •
  • GM TH350, TH400, 700R4, 4L60E DERALE Trans Cooler Kit w/Fan & Fragola Lines/Fittings-Kit-Motion Raceworks
  • GM TH350, TH400, 700R4, 4L60E DERALE Trans Cooler Kit w/Fan & Fragola Lines/Fittings-Kit-Motion Raceworks
  • GM TH350, TH400, 700R4, 4L60E DERALE Trans Cooler Kit w/Fan & Fragola Lines/Fittings-Kit-Motion Raceworks
17
SALE

GM TH350, TH400, 700R4, 4L60E Trans Cooler Kit w/Fan & Fragola Lines/Fittings

Kit

161001

 (24)

Kit - 161001

In Stock - More than 10 available

Ships Tomorrow, When Ordered Before 2pm CST

$589.99

Starting at $54 /mo with
View full details

Racing Use Only, Not Legal for Road Use

GM TH350, TH400, 700R4, 4L60E Trans Cooler Kit w/Fan & Fragola Lines/Fittings

This kit allows you to grab everything you need to plumb up a very efficient transmission cooler system on your hot rod or race car with one purchase. The cooler comes standard with a fan for great cooling ability even at low speeds and in remote mounted areas. This kit uses Fragola Made in the USA lines and fittings!

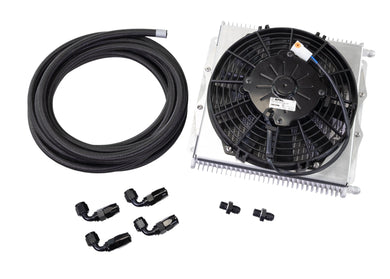

    Included in the kit are:

    • (2) Transmission Oil Port Fittings w/ #6 AN male ends

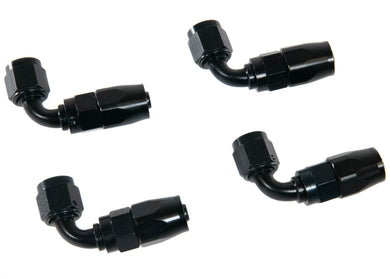

    • (4) 6AN 90* Hose Ends

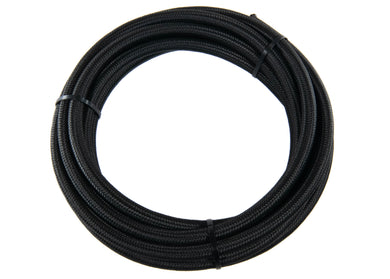

    • Fragola Performance Black Braided Nylon Hose (20ft)
    • 16-100 Motion Raceworks Transmission Cooler w/ fan

    Motion Raceworks Transmission Remote Cooler -6AN fitting

    Motion Raceworks is known for offering solutions for all styles of vehicles. With a long history in drag and drive we were looking to create a great solution for transmission cooling using some of the best components available.

    This transmission cooler is a custom build to our specs. Featuring a PWR tube and fin core combined with a SPAL electric high flow fan and a custom built shroud.

    Features

    • Built using PWR’s patented plate-and-fin technology for superior heat transfer efficiency and compact performance
    • Compact 4 bolt mounting solution
    • Spal electric fan produces 590cfm of air movement
    • Dramatically extends engine and transmission life
    • 6AN inlet size requires no adapters

    Specifications

    • Cooler style:  Plate and Fin
    • Inlet size:  -6AN Male
    • Outlet size: -6AN Male
    • Fan size: 9"
    • CFM:  590
    • Amp draw: 6-6.6 amps
    • Length: 11.1"
    • Width 10.3"
    • Depth:  3.5"
    • Airflow: 10 blade puller / suction fan

    See all transmission kits to find this cooler bundled with appropriate fittings and line for specific transmissions: Click Here



    Customer Reviews

    Overall rating: 4.8 / 5 from 24 reviews.

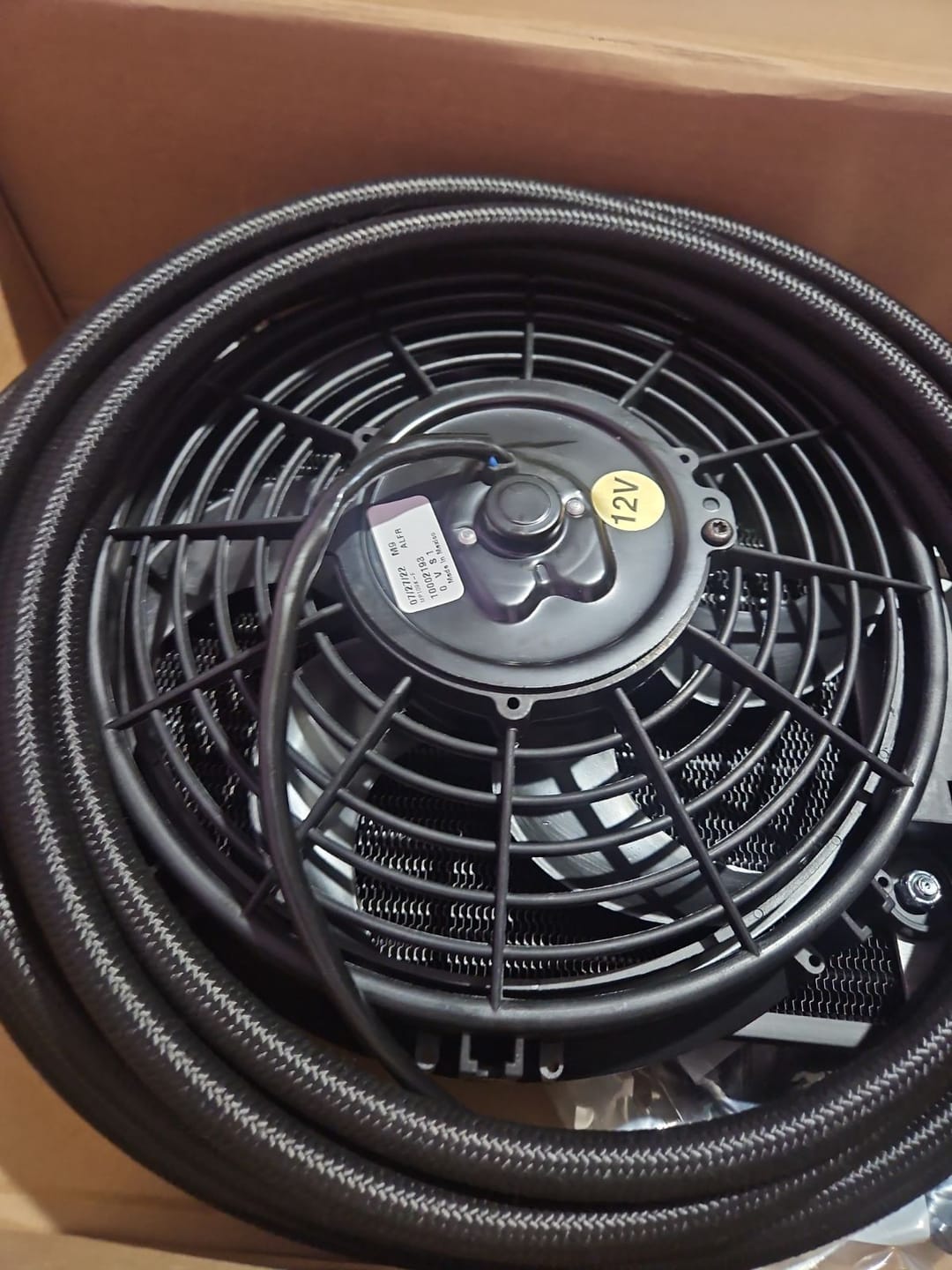

    An absolute treat to receive this package in the mail it was everything I was expecting and then some packed very well and was like Christmas in may. My only complaint is that the aluminum mounting bracket on the cooler was bent a little more than I would like but nothing a little gentle persuasion can’t fix, but no damage to the cooler or fan. ……..Oh and sadly no Motion-Raceworks sticker to slap on my car :( Otherwise very happy with the purchase and will be doing business with the best again shortly.

    Lucas H. 5/5 Verified
