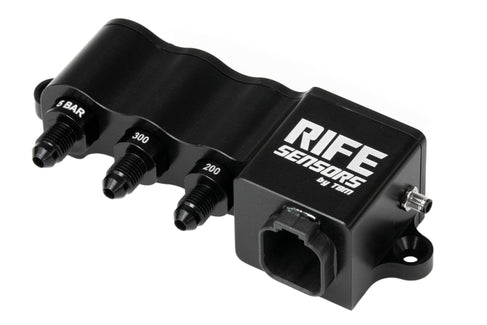

RIFE Triple Sensor Block + 1 M5 Input (Choose Sensors)



Racing Use Only, Not Legal for Road Use


Starting at $43 /mo with

Sensor 1

Sensor 2

Sensor 3

View full details

RIFE Triple Sensor Block + 1 M5 Expander (Choose Sensors)

RIFE Triple Sensor Block Wiring and Sensor Orientation


  • Vibration isolated sensors
  • 3 Built in Pressure/MAP sensors (Choose below)
  • 1 expandable M5 input for external 3 wire 5v sensor
  • -3 AN Male or 1/8" NPT Female connections
  • Automotive Grade Deutsch DT connectors
  • Sealed to IP69
  • Billet aluminum construction
  • Available in 1, 2, 3, or 4 sensor packages
  • Custom configurations available
  • Snubbers available to reduce damaging pressure spikes*
  • Industry standard 0-5V output
  • Compatible with all ECU’s/data loggers**
  • Reduced wiring clutter
  • Higher accuracy
  • Faster response
  • Flexible mounting options
  • All wetted parts are 316 stainless, Viton or anodized aluminum
  • 1 Bar, 2 bar 3 Bar, 5 Bar, 7 Bar, 10 Bar MAP sensors
  • 60psi, 100psi, 150psi, 200psi, 300psi, 500psi, 1600psi

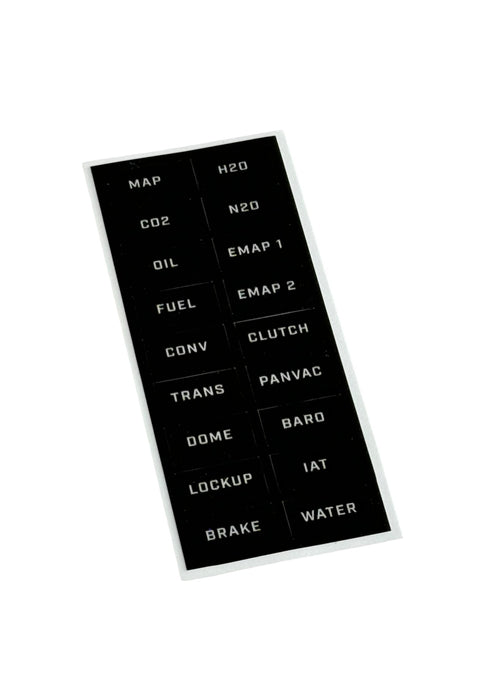

  • Includes Label Sheet

*Note: Unlike most Motion Raceworks family of products, these sensors like most electronics are not 100% Made in the USA. While we diligently attempt to source all US electronic components, we have not been able to source everything domestically.

*Does not include harness. Click here to order the harness

For Wiring Data and Scaling Info: Click Here

Watch this video on the internals and the unique features of this sensor solution!
