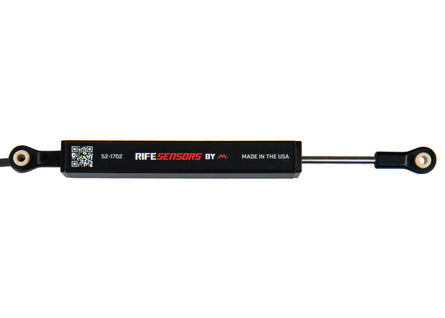

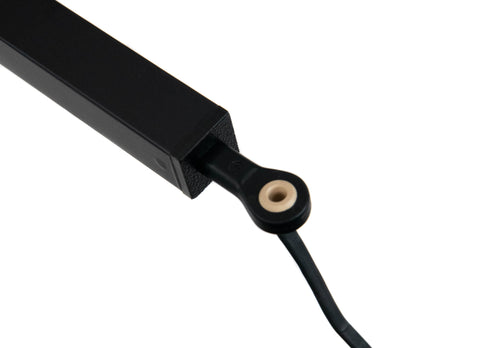

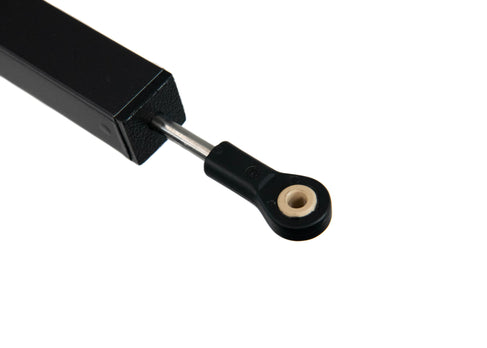

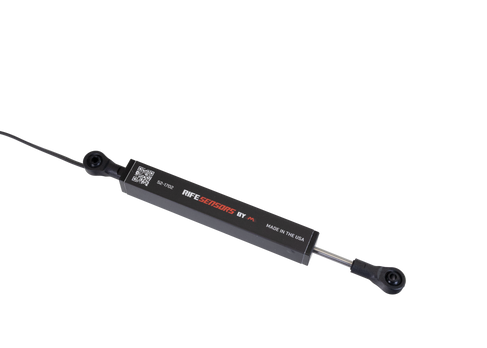

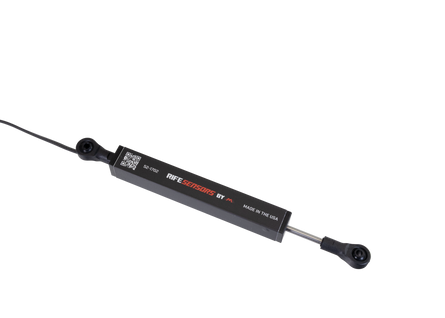

RIFE G-Series 1.75" TPS / Shift Travel Sensor 52-1702

RIFE

52-1702

RIFE - 52-1702

$199.99

$219.99

You Save 9% ($20.00)

Starting at $18 /mo with
View full details

Racing Use Only, Not Legal for Road Use



RIFE G-Series 1.82" Travel Sensor 52-1702

Installation Instructions: Click Here

Shock Travel Sensors by RIFE Sensors are built to perform on the track, delivering you shock position (linear travel position) with a consistent and dependable signal. These sensors are 0-5v and come in a variety of lengths to suit your shock package. Compatible with Holley EFI, Haltech, Fueltech, Motec, Racepak, AEM and more!

100% Made in the USA

Note: this is the G-Spot Sensor Shock Sensor acquired by Motion Raceworks/RIFE sensors in 2023

Features:

  • 3 Wire 0-5V Sensor Output
  • Each travel sensor is hand built and tested at Motion Raceworks
  • Optimized to 40 in/sec extension and compression
  • Sample rate at 10,200 Hz

Specifications:

  • Compressed Length: 7.69"
  • Extended Max Length: 9.51"
  • Max Travel Length 1.82"

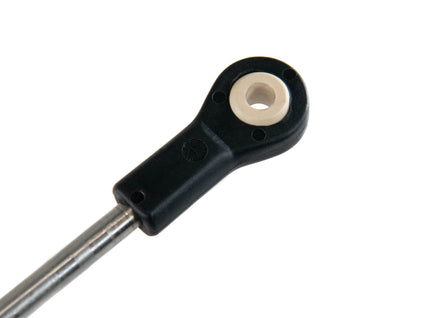

  • Eyelet size: #10 screw or .200 inch

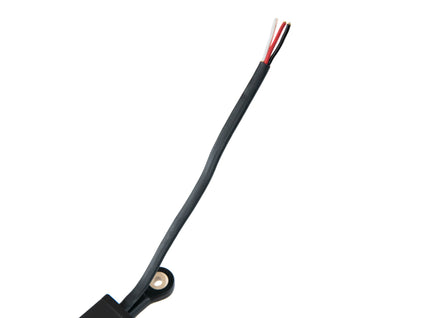

Wire Colors:

  • Red: 5v Sensor Power
  • White: Signal
  • Black: Sensor Ground

Please note: Sensor Power and Ground must come directly from ECU or data logger. These must be dedicated sensor power and ground.

For our whole line of shock sensor lengths and mounts click the link below!

https://www.motionraceworks.com/collections/rife-shock-travel-sensors
