Motion Raceworks High Resolution Driveshaft Speed Wheel offers amazing quality driveshaft speed data with a high resolution approach to help smooth out your graph and deliver accurate data to your recording device or traction control. Our billet steel collar offers 32 tooth pickup points for a hall effect pickup that reduces noise and allows for all of the benefits of a square wave signal.

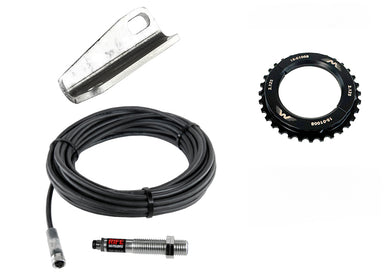

Included

• RIFE Sensors LED hall effect driveshaft sensor w/ cable (PN 52-1044)
• Rife Sensors Billet 32 tooth driveshaft wheel 2.187" ID (PN  18-01009)
• Ford 8.8 sensor bracket

This piece is TRACK PROVEN and we only suggest purchasing this if you like to crush the competition! MRW driveshaft wheel can be utilized with nearly any data collection system as well as any EFI system. As long as your system allows for a hall effect pickup you are good to go! Approved systems include MS3Pro, Holley EFI, Fueltech, Haltech, Motec, HP tuners, and more. Note: Racepak and MSD require 16 tooth pickup max.

This kit is for the Standard Ford 8.8 rear-end and is pictured with a Mark Williams 39023 Ford 8.8 Yoke with 1350 u-joints. Due to the design of these rear ends, you MUST use a yoke such as the one pictured that has a recessed step where the driveshaft goes. On the MW yoke the OD of this section is 2.187". The reluctor wheel depth is .475" so this much room is required. If you do not use this Mark Williams yoke, we cannot guarantee this will work for 8.8 rear-ends.

Mark Williams 39023 yoke is NOT INCLUDED.

This will not fit the Super 8.8 rear ends found in S550 Mustangs

For general sensor and wiring instructions: Click Here

Specific ECU instructions : FuelTech
                                             MoTec
                                             Holley EFI
                                             Haltech

Wiring color reference

•Pin 1 Power (Vcc) - Brown Wire

•Pin 2: Signal Out - Black Wire

•Pin 3: Sensor Ground - Blue Wire

Learn the proper way to wire a driveshaft sensor for the best quality signal
