RIFE 300 PSI DTM Series Pressure Sensor Transducer 1/8" NPT 53-300PSI

RIFE Sensors are designed to perform in the harshest environments while delivering world class data and accuracy. These sensors are specifically designed to operate in the harsh environments found in drag racing, road racing, offroad racing, marine, street performance ,and more. RIFE sensors are machined, built and hand tested in the USA with extreme quality control to provide out of the box performance!

RIFE Pressure Transducer Features:

• Motorsports grade sensor
• Ultra Fast Response Time
• Exceptional Accuracy: Each sensor hand tested and quality control to best in class +/- 0.5% accuracy out of the box
• Stainless steel internal diaphragm for increased durability
• Floating internal sensor core increases durability compared to traditional sensors with fixed mounting
• 0-5v sensor compatibility
• 0-300psi pressure range
• Bodies machined in Dewitt, IA
• All sensors Hand built in Dewitt, IA

• Compatible with Trans Fluid, Gasoline, Oxygenated Fuels, Methanol, Oil, Coolant, Water, Air, CO2, Nitrous Oxide, Brake Fluid and more!

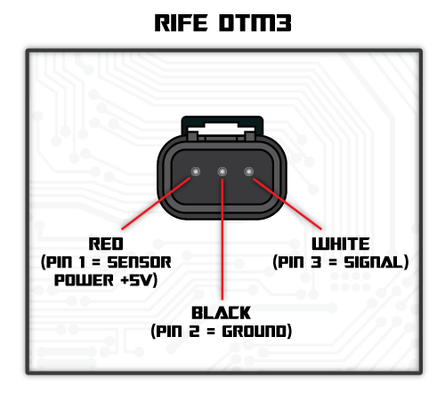

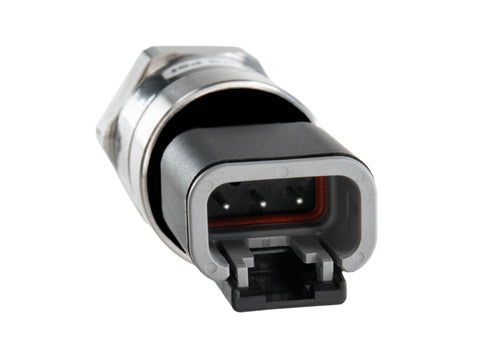

• Utilizes high quality custom molded 3 pin DTM style connector

Add a male connector kit w/ pins: Click Here

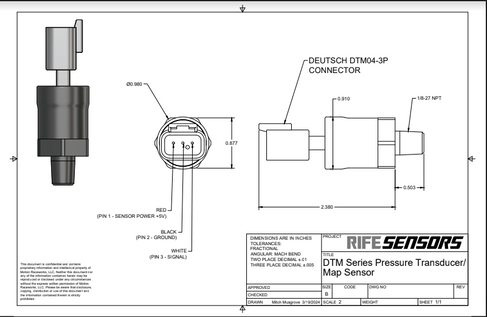

These screw in Pressure Transducers utilize the same state of the art proprietary sensor core used in our RIFE pressure blocks, with a specially designed body. These stainless sensor bodies hold the sensor core on an O-ring to better isolate the sensor from engine and road vibrations to create a more durable and dependable sensor.

This 5v style pressure transducer works great with Holley EFI, Haltech, Fueltech, MS3 Pro, Racepak, and more!

All RIFE Pressure Sensors are quality checked for functionality, sealing/leaks, and are held to accuracy of +/- .5% in order to provide the end user with the best possible data on the market!

RIFE pressure transducers have been tested and are compatible with Trans Fluid, Gasoline, Oxygenated Fuels, Methanol, Oil, Coolant, Water, Air, CO2, Brake Fluid and more!

*Note: Unlike most Motion Raceworks family of products, these sensors like most electronics are not 100% Made in the USA. While we diligently attempt to source all US electronic components, we have not been able to source everything domestically.
