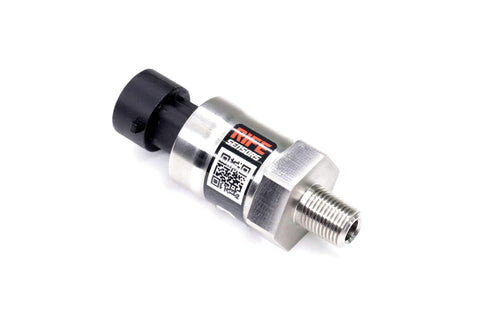

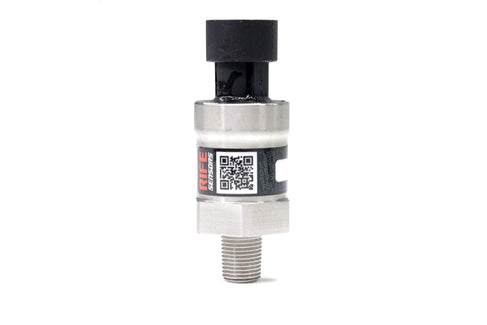

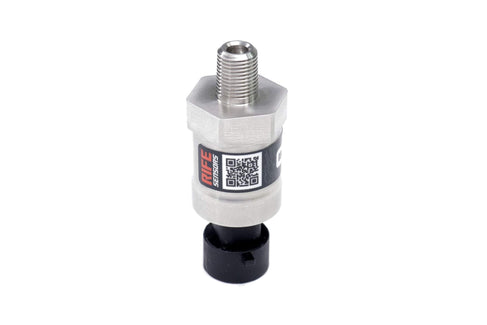

RIFE 150 PSI Pressure Sensor Transducer 1/8" NPT

RIFE

52-150PSI

 (21)

RIFE - 52-150PSI

In Stock - More than 10 available

$118.99

$139.99

Black Friday Savings $21.00

View full details
Starting at $10 /mo with

Ships Today When Ordered Before 2pm CST

Racing Use Only, Not Legal for Road Use

RIFE Sensors are designed to perform in the harshest environments while delivering world class data and accuracy. These sensors are specifically designed to operate in the harsh environments found in drag racing, road racing, offroad racing, marine, street performance ,and more. RIFE sensors are machined, built and hand tested in the USA with extreme quality control to provide out of the box performance!

RIFE Pressure Transducer Features:

  • Motorsports grade sensor
  • Ultra Fast Response Time
  • Exceptional Accuracy: Each sensor hand tested and quality control to best in class +/- 0.5% accuracy out of the box
  • Stainless steel internal diaphragm for increased durability
  • Floating internal sensor core increases durability compared to traditional sensors with fixed mounting
  • 0-5v sensor compatibility
  • 0-150psi pressure range
  • Bodies machined in Dewitt, IA
  • All sensors Hand built in Dewitt, IA
  • Compatible with Trans Fluid, Gasoline, Oxygenated Fuels, Methanol, Oil, Coolant, Water, Air, CO2, Nitrous Oxide, Brake Fluid and more!
  • Utilizes industry standard 3 pin Delphi connector

These screw in Pressure Transducers utilize the same state of the art proprietary sensor core used in our RIFE pressure blocks, with a specially designed body. These stainless sensor bodies hold the sensor core on an O-ring to better isolate the sensor from engine and road vibrations to create a more durable and dependable sensor.

This 5v style pressure transducer works great with Holley EFI, Haltech, Fueltech, MS3 Pro, Racepak, and more!

All RIFE Pressure Sensors are quality checked for functionality, sealing/leaks, and are held to accuracy of +/- .5% in order to provide the end user with the best possible data on the market!

These sensors utilize a standard 3 pin Delphi connector for utilization with all popular EFI harnesses. Connectors can be found below

Note this is a plug and play sensor sensor meaning connector is the same and no settings need changed in the ECU option for the following:

  • Fueltech  5005100585 / 5005100023
  • Fueltech 5005100020
  • Racepak 810-PT-0150GVT
  • Haltech HT-010904
  • Low Doller 8990150-0-150
  • Low Doller 7990150


Flying Lead Option: Click Here

Crimp Connector Option: Click Here

RIFE pressure transducers have been tested and are compatible with Trans Fluid, Gasoline, Oxygenated Fuels, Methanol, Oil, Coolant, Water, Air, CO2, Brake Fluid and more!

*Note: Unlike most Motion Raceworks family of products, these sensors like most electronics are not 100% Made in the USA. While we diligently attempt to source all US electronic components, we have not been able to source everything domestically.

Add a male connector kit w/ pins

Crimp Terminal Kit: Click Here

Flying Lead Connector: Click Here

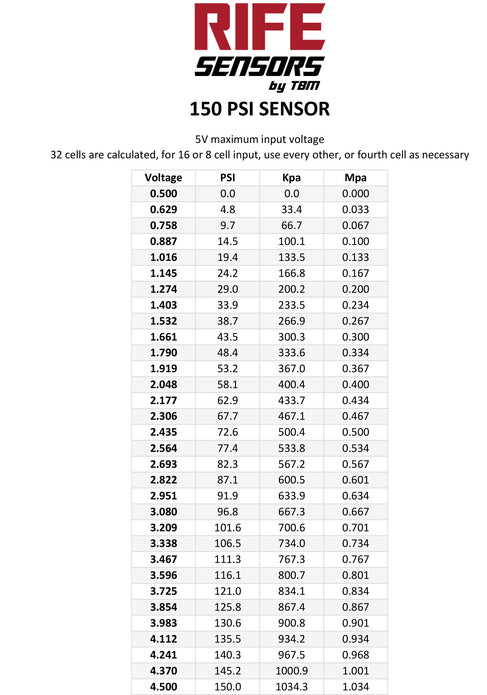

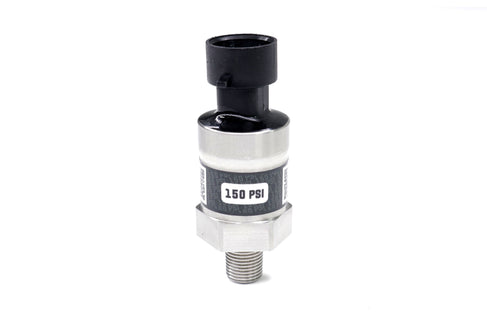

RIFE 150PSI Pressure Sensor

  RIFE Pressure Sensor Wiring and Size Drawing

Choosing the correct pressure sensor for your application


Choosing the right pressure range for your application:

Because resolution of any particular sensor is limited to the amount of cells for data. Using too large of a psi sensor for your application can limit accuracy. For instance if you are limited to 16 cells, a 100 psi sensor will have closer increments in those cells compared to a 500 psi sensor, meaning 0-100 will provide tighter numbers across those 16 cells for reference voltage vs calibration. For this reason you want to use as small of a sensor as possible that the data can be below the ceiling. If you are measuring oil pressure for instance that will max out around 120 psi, a 150 psi sensor would be the perfect choice as it does not limit your max reading, but will have a much more accurate incremental vs a 200, 300, or even 500 psi sensor. Often times builders and racers will choose to use all 500 psi sensors, or all 300 psi sensors because it is convenient. While this may work, it will limit the accuracy if you are concerned with the data provided. RIFE sensors are true motorsports grade sensors with options of 60 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi, 1600 psi for options that more closely correlate with the source you are measuring than other sensor companies on the market. For all pressure range options: Click Here

Thread size:

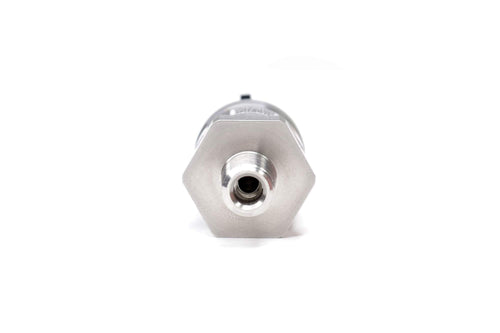

Most pressure sensors used with aftermarket ECU’s utilize an 1/8” NPT male connection. RIFE Sensors screw in pressure sensors are 1/8” NPT as well making them a direct replacement and upgrade for other brands. There are a variety of ports on factory style engines like LS, LT, and Coyote that use a different thread pitch such as oil pressure locations. RIFE Sensors also carries adapters for different sizes, Click Here to shop these adapters that adapt to 1/8” NPT

Connector:

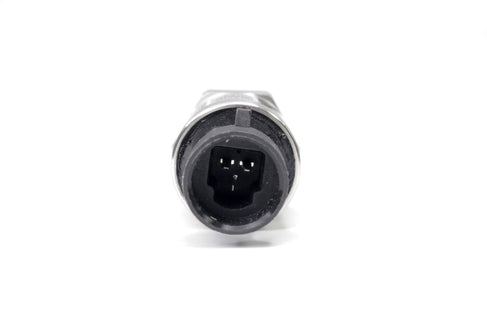

Pre made harnesses found with aftermarket ECU like Fueltech, Holley, Haltech, HP Tuners, and many others use a standard Delphi GT style 3 pin pressure and map sensor connector. This makes our 52 series sensor the correct choice for these use cases: Click Here for a full list. However, some aftermarket and high end harnesses choose the premium DTM style 3 pin connector as it is a more durable, weather sealed, and high end connector for motorsports. These are our 53 series style sensors: Click Here to shop. Both the 52 and 53 sensors are identical in every way other than the connector for reference purpose.

Accuracy:

Choosing the correct pressure range can be important for those who want accurate and concise data. All of our sensors are calibrated to +/- .5% which is some of the most accurate in the industry, this means if or when you replace a sensor it is as close to identical as possible so that you can actually compare and use data from one sensor to the next in case of a failure or issue. A good example means if you have a 100 psi sensor, and you are measuring a source that produces 70 psi, replacing this sensor means that the reading of the replacement sensor at 70 psi will be within .35 psi of the original sensor. This is important as many sensors on the market are only calibrated to +/-2% or higher. At a higher percentages like 2% you may see pressure inconsistencies of +/-1.5 psi which can prove an issue in certain conditions like dome pressure, and others as this discrepancy in psi grows in large psi sensors such as a 500.

Calibration:

All RIFE pressure sensors are .5 to 4.5v which means that they are a direct replacement for other .5v to 4.5v sensors with the same pressure ranges while providing all of the benefits RIFE sensors offers of a more accurate sensor, improved durability with its floating core design, and other unique design features.
