RIFE Pro Series Transmission Combo Pack for TH400 Lock Up Transmission Pressure Triple Sensor Block Kit with Mount

Motion Raceworks

16-00003-1

Motion Raceworks - 16-00003-1

$530.99

$589.99

You Save 10% ($59.00)

Starting at $49 /mo with
View full details

Racing Use Only, Not Legal for Road Use

Motion RIFE Transmission Pressure Sensor Block & Mount 500 PSI x3 16-00003 for Lock up TH400 Transmission

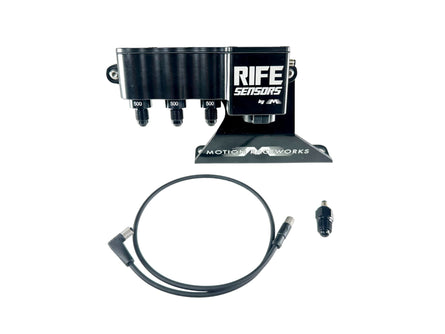

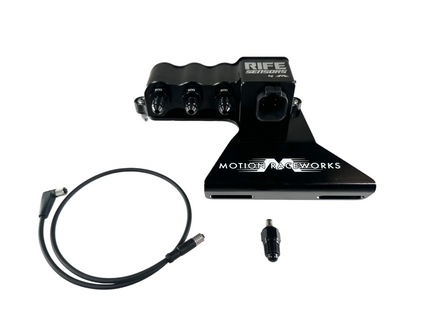

Included:

  • 500PSI sensor: Lock up Pressure
  • 500PSI sensor: Line Pressure
  • 500PSI sensor: Converter Pressure
  • Transmission Mounting Bracket
  • 1.5' M5 Cable (52-1311)
  • 1/8" NPT Fluid Temp Sensor with M5 cable (short) (52-1225)
  • Deutsch DT 6 pin 9 ft long harness with Tefzel wire (52-1034)

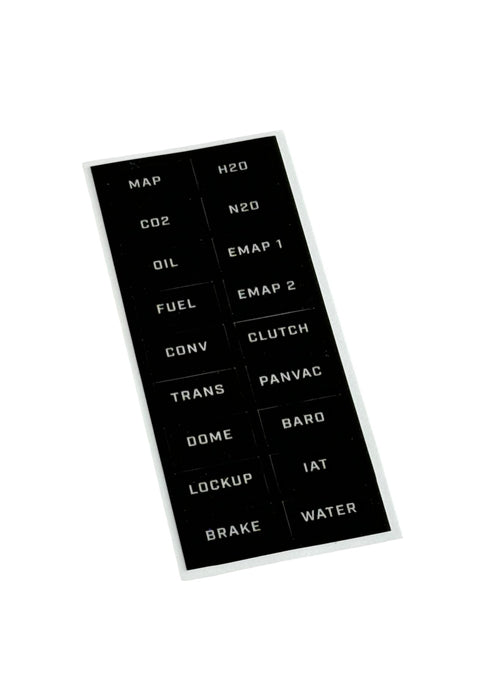

  • Includes Label Sheet

When running a lockup style transmission, this triple mount provides an effective solution for measuring transmission line pressure, converter charge pressure, and converter lockup circuit pressure. These pressures are essential for proper transmission tuning.

Automatic transmission and torque converter technology continues to evolve and improve.  Racers take driveshaft, engine rpm, and transmission pressure data to refine their strategy for converter setup, dump valves, and converter lockup.

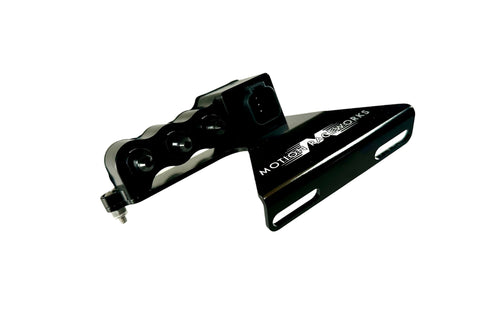

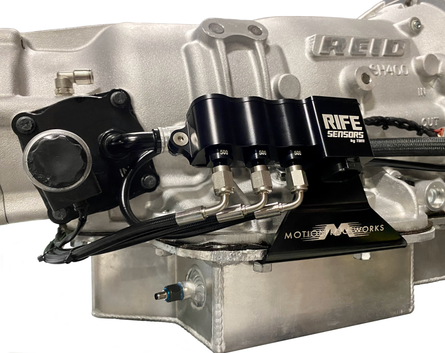

This mount bolts to the pan bolts on your Turbo 400 transmission and gives you the ability to plumb up sensors for Line, Converter PSI, and Lockup PSI so that the plumbing stays with your transmission and it is as simple as disconnecting the main Deutsch connector to remove a transmission and the associated sensors.

This triple sensor tucks up into the back of the transmission to allow for clearing trans tunnels, exhaust, and other items that would normally be in the way.

RIFE innovative dual silicone isolated sensors are more accurate, withstand vibrations better, and makes wiring easier.

Features:

-Easier wiring: Sensors share ground and 5v reference for easier sensor wiring.  One  Deutsch connector makes for easier routing and less plugins.

-Out of the way: This moves sensors to an area that is generally open so that sensors are not in your way of installing and removing fittings on to the transmission where space is limited.

-Dual Isolated sensors: less prone to failure from vibration due to innovative RIFE pod sensor style design.

-Easy swap sensors: If you want to change to a different PSI sensor or replace, changeovers are easy.

-Plumbing stays with the transmission.  Meaning less things to hookup once the transmission is in the chassis.

-Adjustable mounting: Slide block forward or backward to clear other dump valves, solenoids, etc.

Included:

-RIFE 500/500/500 PSI Dual Sensor Block with 3AN male inlets

-Anodized Aluminum Mounting Bracket

-Necessary hardware

 *Does not include harness. Click here to order the harness

RIFE Triple Sensor Block Wiring and Sensor Orientation


*Note: Unlike most Motion Raceworks family of products, these sensors like most electronics are not 100% Made in the USA. While we diligently attempt to source all US electronic components, we have not been able to source everything domestically.


For pressure sensor 500PSI data: Click Here
