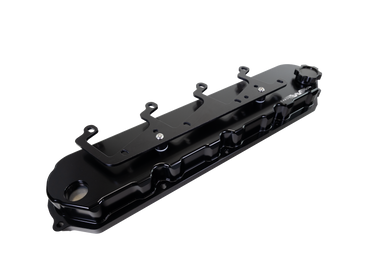

Motion Billet Gen V LT Valve Covers (Black Anodized Finish) 11-123BLK

Motion Raceworks seeks to innovate their way into simplifying builds while focusing on aesthetics and overall function! These billet Gen V LT1/LT4 valve covers are a showcase and a prime example of this.  These valve covers are modeled to allow 2650 Superchargers to fit from Magnuson, Harrop.

The result is a valve cover that is something that can be used for a HUGE variety of builds without sacrificing looks or function.

Installation Instructions: CLICK HERE

Included:

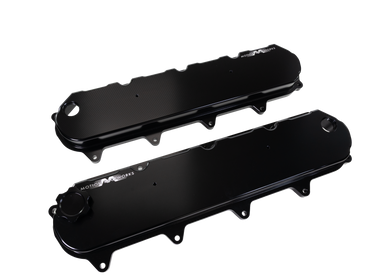

• Driver & Passenger Valve Cover
• (1) Billet Oil Cap (16 ORB)
• (2) Breather Fittings (Choose 10AN or 12AN in options)
• Pre-Installed Baffles
• Hardware to Bolt to Head
• 1 Pair OEM Valve Cover Gaskets


 Features:

• Black Anodized Finish

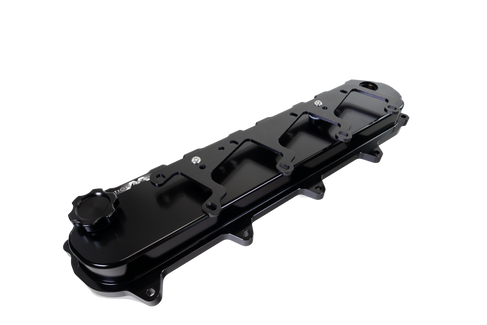

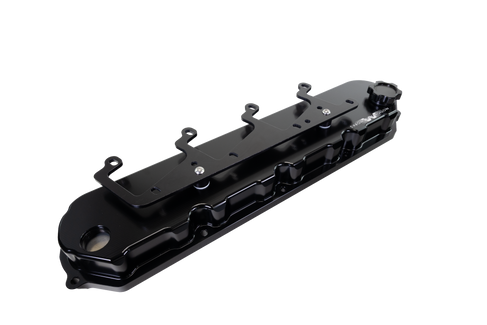

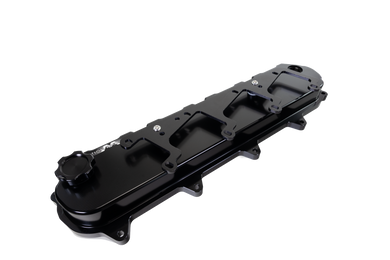

• Innovative Coil Mounting Design Adapts Nearly Every Style Coil without sacrificing looks when not running coil packs.
• Valve Cover able to be removed without unbolting coil packs
• Baffled -12ORB Breathers adaptable to 10AN and 12AN

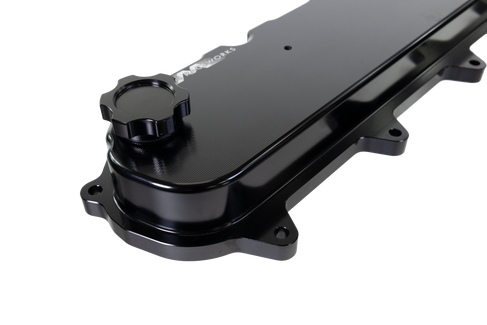

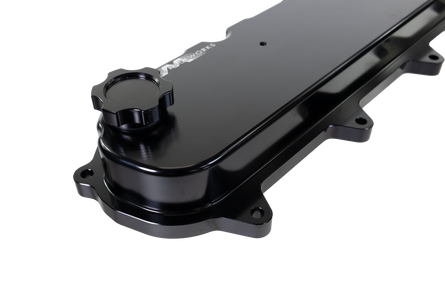

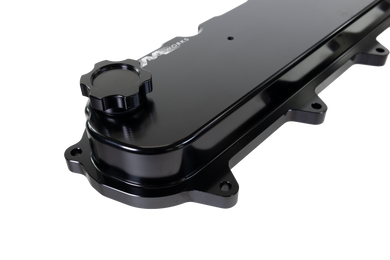

• Billet Oil Cap (-16 ORB)

• Reuses Factory Gaskets
• Coil-pack mounting able to be changed at later time with A La Carte Coil Pack brackets
• Locating shoulder doubles as oil rail to make sure valve covers stay in place and do not slide.  Rail also keeps oil from draining on to headers after removing valve cover.
• CNC Designed, Made, Machined, Assembled, Coated in the USA
• Fits Stock and Most Aftermarket L83, L86, LT1, LT4 cylinder heads

Breathers

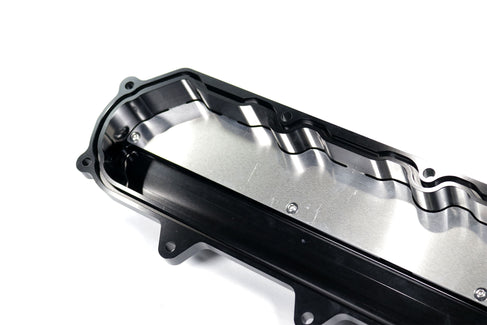

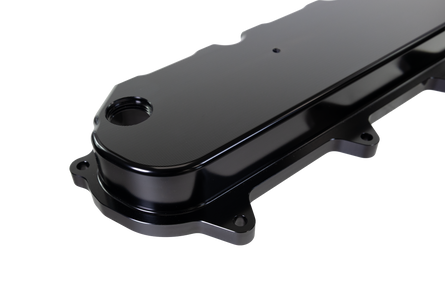

At Motion Raceworks we understand PCV and crank case pressure is unavoidable.  We also believe that filling catch cans up with oil due to poor breather design is not acceptable.  This valve cover features a long high flow breather channel which will remove excess crank case pressure, and is serviceable by removing C-Clips. Our cover was machined on the top side to receive one of our custom low profile -12 ORB fittings.  This means you can adapt to 10AN or 12AN.

Note: Custom fittings were designed and made to allow for packaging and clearance of internal baffling, standard -12ORB fittings will not work.  Fittings Included, but also sold separately.

***Rocker Clearance: These valve covers clear factory and most aftermarket rocker arms. They will not fit with the Jesel Pro-Steel shaft mount rocker system designed for Gen V LT CID cylinder heads.***
