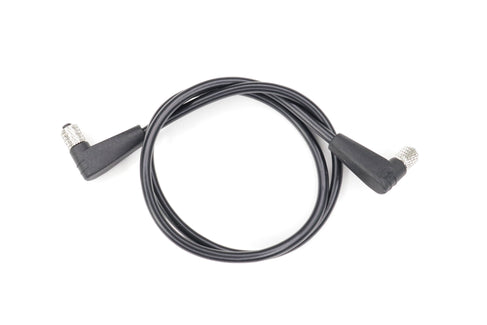

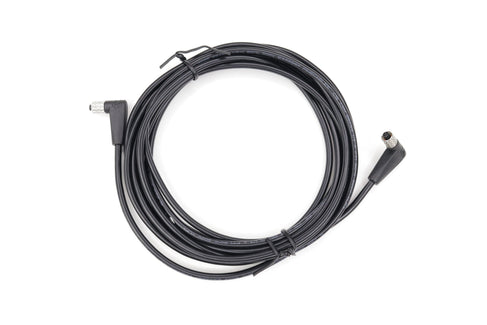

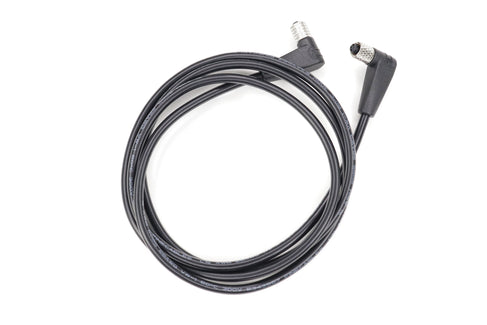

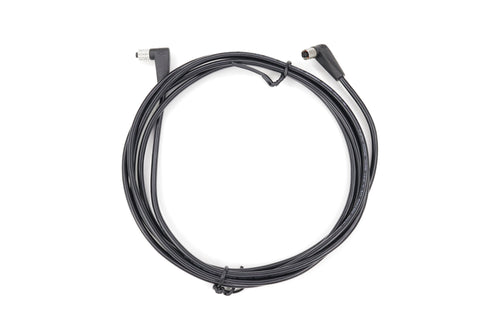

RIFE M5 Cable 90°/90° – 1.5 / 3 / 6 / 9 Feet

RIFE

52-1316

RIFE - 52-1316

$20.40

$24.00

You Save 15% ($3.60)
View full details

Racing Use Only, Not Legal for Road Use

RIFE M5 Cable 90°/90° – 1.5 / 3 / 6 / 9 Feet

RIFE’s M5 cables provide a durable/sealed solution for connecting your RIFE sensors.

Simple screw-on attachment.

Hi-Temperature Polyurethane Jacket.

Available in:

  • 90°/90° - both ends finished
  • Connector OD: .250”
  • Cable Diameter: .160”

DIY Finishing kit (Part# 52-1309) includes straight connector and adhesive heat-shrink for custom length cables (soldering required): Click Here

If removing or changing an end on this cable to adapt to a non standard m5 connector the wire colors / pinouts are as follows so long as you are using RIFE supplied M5 cables

Pin1 Brown: Signal Out

Pin2 Black: Sensor Power

Pin3 Blue: Sensor Ground
