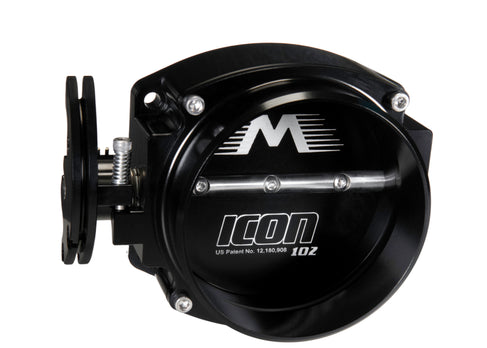

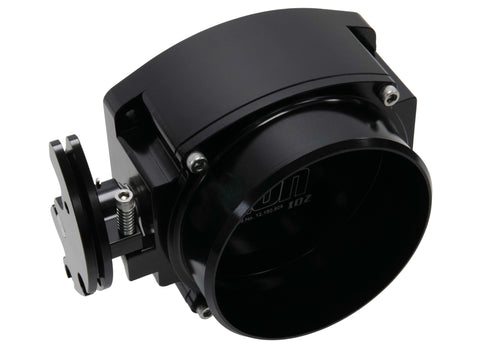

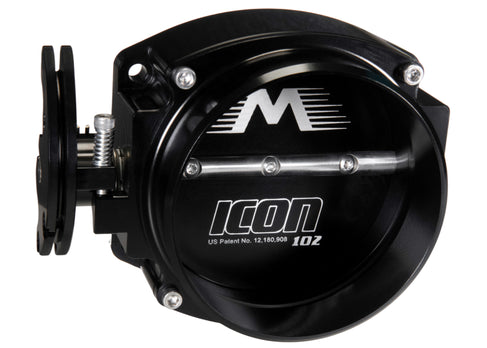

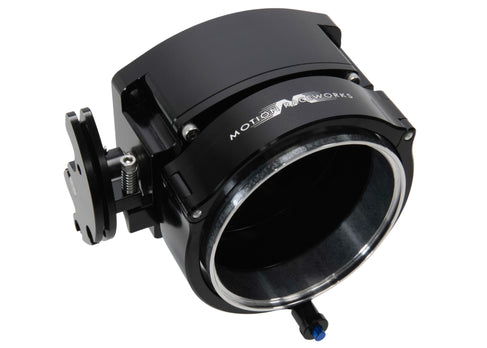

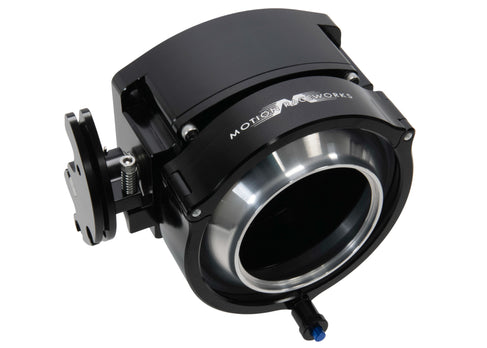

ICON Race 102/105mm LS Cable Drive Throttle Body (Black) w/ Interchangeable Connection

Note: This will work on any 102 or 105mm LS pattern intake even though it is a 102mm throttle body!

Derived from years of design, desire for something better, and innovation in the automotive aftermarket.  The Motion Raceworks Made in the USA ICON series throttle body adapts to nearly any build with a modular front attachment that allows you to change from a standard barb, to a vband, quick seal boost coupler, billet transitions and more. These throttle bodies have proven to perform from daily drivers to Pro Mods and everything in between! There are multiple variations of the ICON throttle body, see specs below for this listing. Click Here for other options

Our Race series ICON throttle bodies remove the factory IAC port to allow for more hood clearance and to remove items associated with IAC for simplicity, weight, and air disturbance.

Specs

• Bolt Pattern: LS 4 bolt
• Finish: Black Anodized
• Blade Size: 102/105mm
• Linkage Style: Cable
• IAC Port: No

U.S. Patent Number:  12,180,908

*Patent Pending*

Features:

• 100% Dreamed, Designed, Engineered, CNC Machined, and Assembled in the USA

• Design creates shortest throttle body on the market with modular attachments
• Overall length with attachments reduced by over 30%
• Interchangeable Connection (ICON) design allows for easy change of frontal attachment
• Utilizes Motion Raceworks Patent Pending ICON technology to easily adapt necessary attachments.

• Welded blade screw to help avoid screw loosening or falling out with vibration and heat

 Compatibility:

• Utilizes LS style TPS sensor
• 4 Bolt LS2 style throttle body bolt pattern for maximum compatibility, also fits LS3, LS7, LSA, and LS9 intake patterns with proper intake opening sizing.
• Throttle Attachment uses standard style cam for use with GM/Lokar LS style connections.
• Compatible with Ford / SBF 4 bolt pattern intakes using this adapter: Click Here

Learn about what makes the ICON 102mm Throttle Body so unique!

Attachments (see below): ICON throttle bodies utilize a patented 4 bolt interface that allows you to change the front connection at anytime without rebuying the entire throttle body. This saves packaging space and prevents welding or fabricating on your throttle body.

• Ultra Grip 4" OD Barb Attachment (Direct Replacement for other LS2 aftermarket throttle bodies)

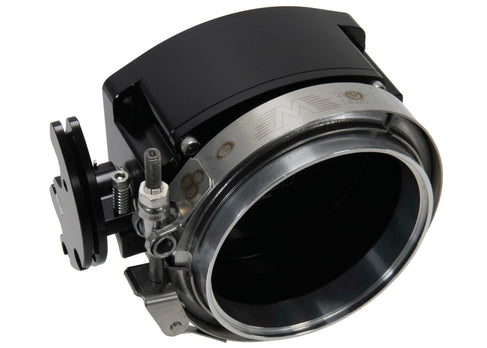

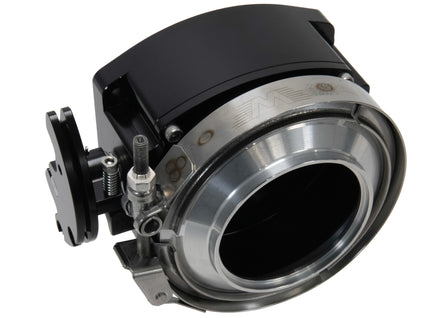

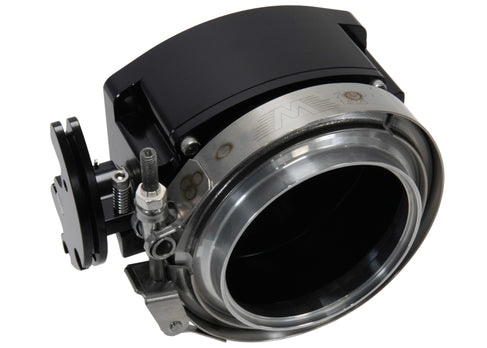

• 4" V-band w/ Quick Release Clamp (Includes Aluminum Weld Flange)
• 3" Quick Seal w/ 3 piece Clamp (Includes Aluminum Weld Flange)
• 3.5" Quick Seal w/ 3 piece Clamp (Includes Aluminum Weld Flange)

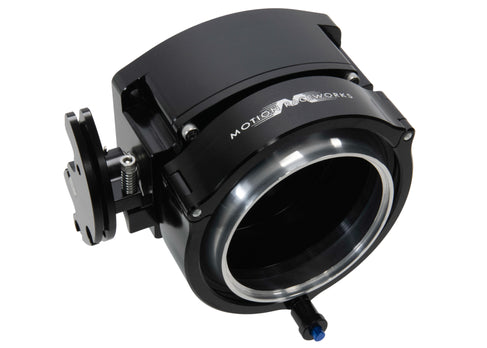

• 4" Quick Seal w/ 3 piece Clamp (Includes Aluminum Weld Flange)

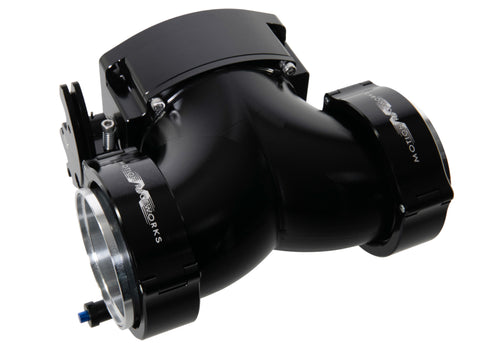

• Dual 3" Y w/ V-band Attachment (Includes Aluminum weld flanges and clamps)
• Dual 3" Y w/ Quick Seal Boost Couplers (Includes Aluminum weld flanges)

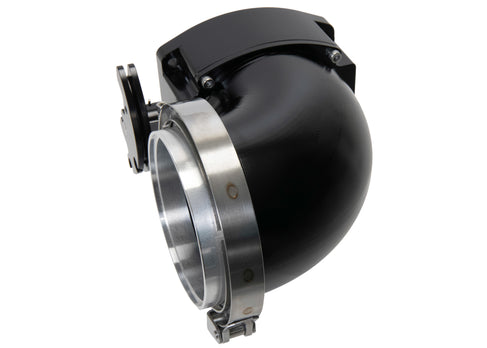

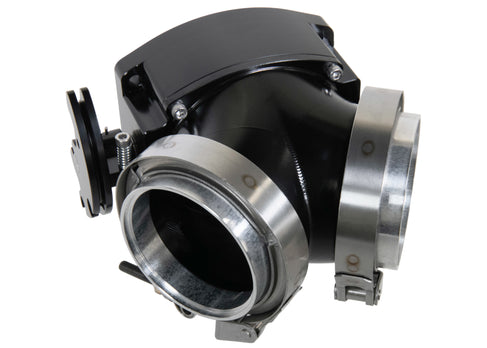

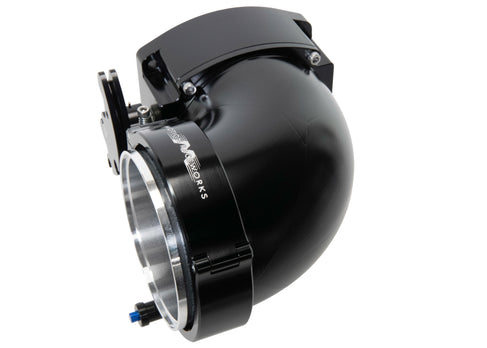

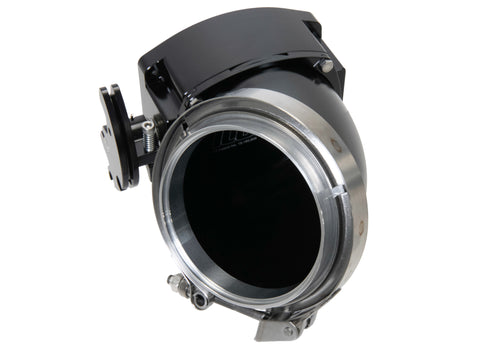

• 90° Aluminum 4" w/ V-band  (Includes Aluminum V-band flange and quick release clamp)
• 90° Aluminum 4" w/ Quick Seal Boost Coupler (Includes Aluminum weld flanges)

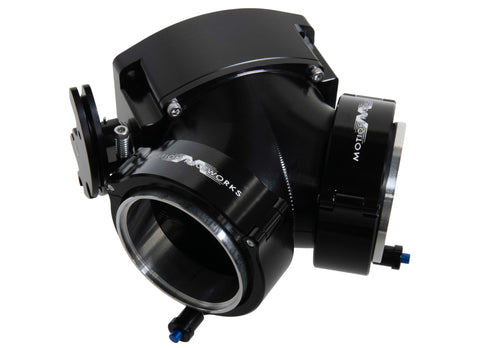

• Dual 3" T w/ Quick Seal Boost Coupler (Includes Aluminum weld flanges)
• Clockable 60 degree w/ 4" V-band (Includes Aluminum weld flanges)

Need a replacement O-ring for your 102mm Interchangeable Connection: Click Here

Need a new throttle cable for your ICON throttle body? Check out our Motion Raceworks Throttle Cable: Click Here

Need a throttle cable bracket for your icon throttle body? Check out our universal throttle cable bracket: Click Here

Find instructions here: Click Here
