Attachment Only: High Flow 90° Tight Radius 4" Quick Seal for ICON 92mm

Motion Raceworks



Motion Raceworks - 10-13016BLK



You Save 3% ($20.00)

Starting at $55 /mo with
View full details

Racing Use Only, Not Legal for Road Use

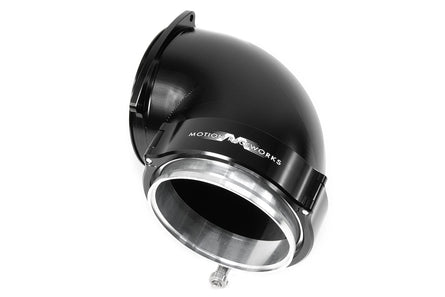

High Flow 90° Tight Radius 4" Quick Seal Attachment for ICON 92mm Throttle Body 10-13016BLK

*Note:  This tight radius 90 is the same 90 that comes in and is compatible with the 102mm ICON Throttle body with an additional adapter ring.*

Note: This is for ATTACHMENT ONLY, throttle body must be purchased separately.

Motion Raceworks ICON (Interchangeable Connection) throttle body is the last throttle body you will ever need to own thanks to its modular design that allows for change and adaptation as your project progresses and changes.

This patent pending design uses an o-ring seal to bolt to the ICON base.  This is field serviceable and changeable.

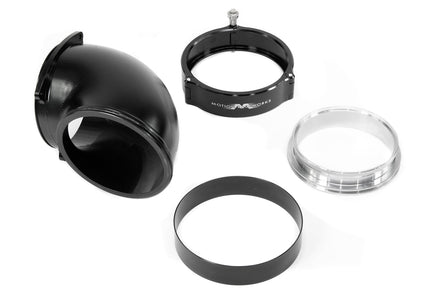

  • Billet 90° Attachment
  • O-ring
  • 4 Attachment Bolts
  • 4" Quick Seal Weld Flange
  • Quick Seal Sealing ring
  • Quick Seal 3 piece clamp for 4"
  • Quick Seal Stainless Quick Pin
  • Adapter taper ring to transition to 92mm bore size


For Quick Seal Flanges to adapt to other pipe sizes: Click Here

See other throttle body attachments: Click Here

See the ICON 92mm Throttle Body: Click Here

Need a replacement O-ring for your 92mm Interchangeable Connection: Click Here

Learn about what makes the ICON throttle body so unique!
