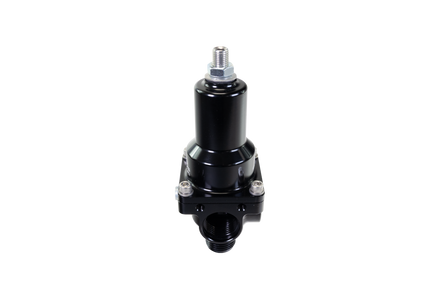

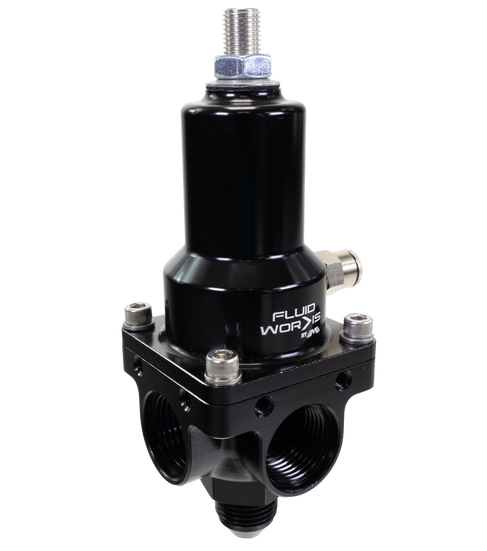

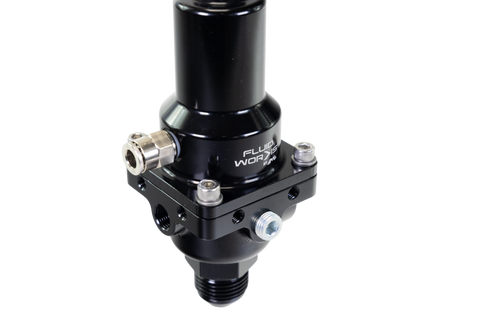

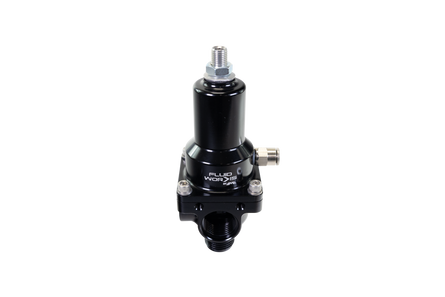

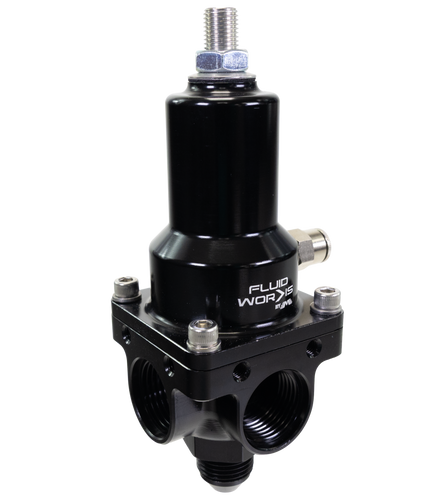

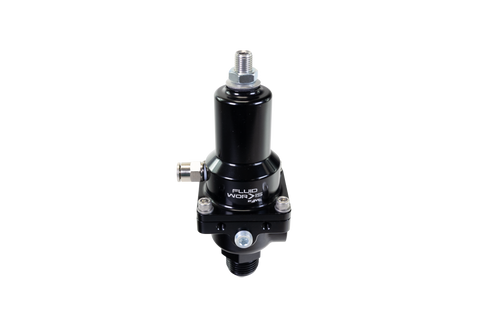

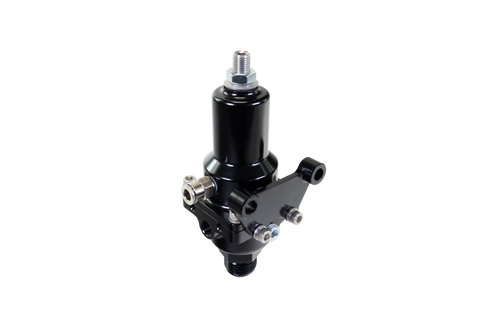

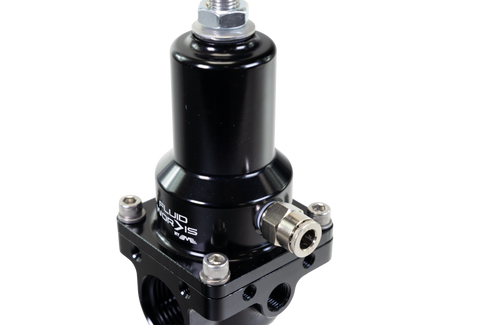

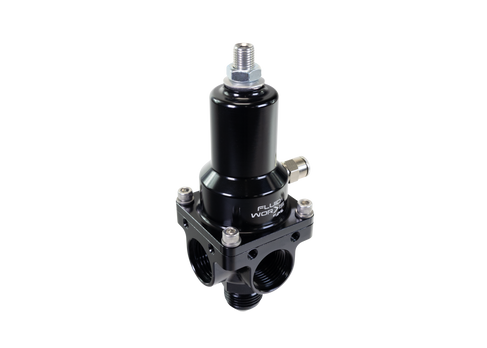

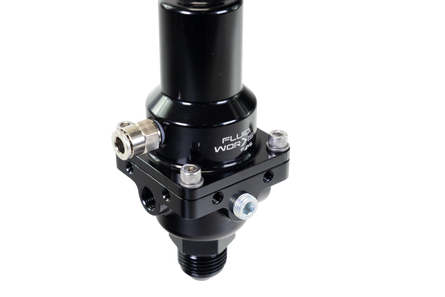

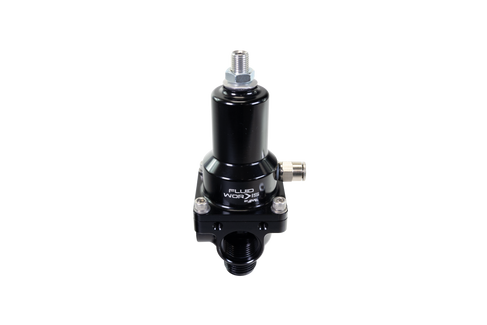

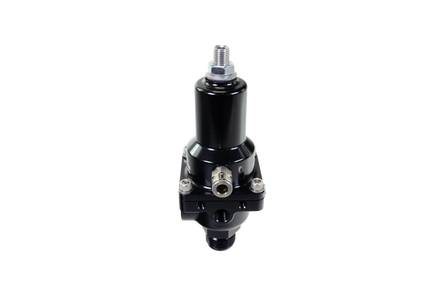

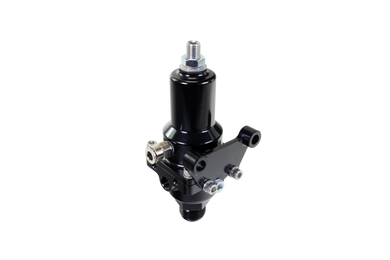

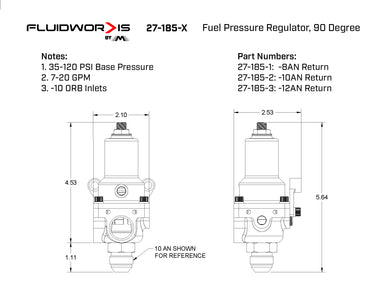

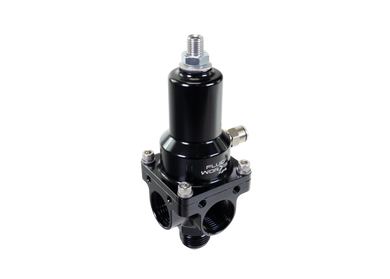

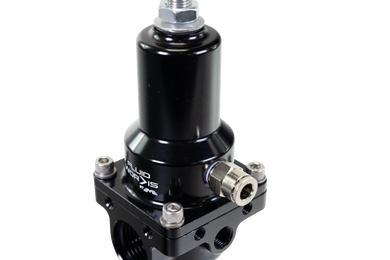

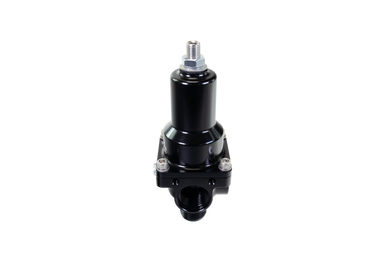

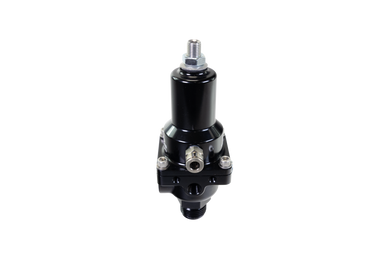

Fluidworks 7-20 GPM Fuel Pressure Regulator 35-120 psi 90 Degree Fittings 27-185

For Instructions: Click Here

Fluidworks innovative new fuel pressure regulators utilize an innovative needle and seat vent to control fuel bypass in a highly stable and consistent manner dynamically.

Features:

• Compatible with 7-20 GPM fuel pump setups
• Compatible with mechanical fuel pumps
• Compatible with static or variable speed electric fuel pumps
• Black Anodized Exterior
• Can be used as Boost Reference or Atmospheric reference
• 1/8" NPT Female Reference Fitting
• (2) 1/8" NPTF Fuel Pressure Reference Ports for use with mechanical gauge and/or pressure transducer
• Approved for use with Gasoline, Diesel, Oxygenated, Ethanol and Alcohol Fuels
• Made in the USA
• Tapered Needle and Seat Vent Relief
• Bypass Regulator
• (2) -10orb female 90* degree inlet fittings
• Built in -10AN or -12AN return fitting (choose at checkout)
• Designed to be used in 35-120psi adjustable base pressure
• Includes 1/8" NPT to 1/4" P2C hose fitting

For other Fluidworks Fuel Pressure Regulators and Fitting Configurations: Click Here

Note: Due to potential internal disruption, please make sure if using a reference line fitting other than that supplied, caution is taken to make sure the fitting is not too long causing spring bind when screwed into fuel pressure regulator housing.
