3/8" NPT RIFE Hi IAT Air Temperature Sensor DTM Connector 40 to 485°F
RIFE
53-1010
RIFE - 53-1010
$67.15
$79.00
You Save 15% ($11.85)
Please select all options
Racing Use Only, Not Legal for Road Use

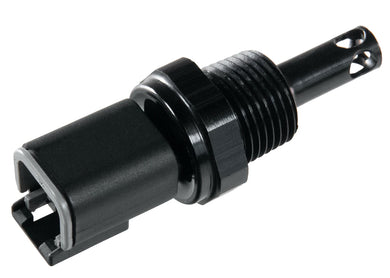

3/8" NPT RIFE Hi IAT Air Temperature Sensor Deutsch DTM Connector 40 to 485°F (53-1010)
RIFE "Hi Temp" IAT / Intake Air Temp Sensors are perfect for 40°-485°F temperature ranges of intake air temps. These sensors feature ultra-fast response thermistors which are not only faster but more accurate than traditional EFI sensors on the market. Fast response times and accurate readings means more accurate adjustments to your tune for a safer and more reliable tuneup that you can count on.
The Hi-AT sensor series is typically only used for turbo and blower cars as an IAT sensor and for compressor outlet temperature measurement. Due to the high temperature ceiling it has, the resolution at lower temperatures will be greatly decreased. They are also acceptable for other applications around the vehicle that require an extended temperature range. The Hi-AT sensor is optimized for accuracy and resolution in the 40°-485°F temperature range.
Features:
- 3/8" NPT thread
- GM Delphi Connector
- 15x Faster Response Time
- 3x More Accurate Readings
- Machined and built in house
- 40 to 485°F
- Hard Anodized CNC Machined housing
Connectors Sold Separately
Connector Kit w/ crimp terminals: Click Here
*Note: Unlike most Motion Raceworks family of products, these sensors like most electronics are not 100% Made in the USA. While we diligently attempt to source all US electronic components, we have not been able to source everything domestically.
*Note: This will not work with Fueltech or Haltech ECU. For these ECU please use part number 52-1243 or Click Here . These standard IAT are able to be configured and run as a "Hi" version from -5 to 450 degrees F.
This sensor will not be a direct plug and play for your factory ECU. You will need to calibrate the ECU to read the sensor data correctly.
Calibration Setup for EFI Systems Click Below Links
Need a different thread pattern or electrical connection? Check out our full line of Air Temp Sensors HERE
Please note: Thermistors do not have a certain polarity. So when wiring, wire color or pin location on our sensor does not correlate or require specific configuration.
General Calibration Info
Learn about the benefits of a fast acting intake air temperature sensor
Learn more about proper IAT positioning as well as tips and tricks by watching this video.
