2005-14 Mustang S197 Parachute Mount 14-140

This Motion Raceworks 2005-14 Mustang S197 Parachute Mount is a great NHRA & IHRA track legal option to stop your vehicle safely, but look good while doing it. Made in the USA, we fully TIG weld a combo of DOM Chromoly Tubing and CNC Laser Formed Brackets for a strong but lightweight design. From there the mount is inspected and prepped for its standard gloss black powder coat finish to become the highest quality piece on the market!

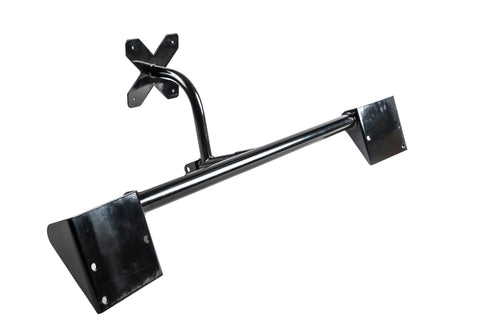

The Frame Cross Bar is designed to bolt on to your factory frame mounts replacing the factory crash bar/bumper support. With a cross bolt receiver design this allows for easy installation and with removal of one bolt, the Parachute Receiver Mount comes out. Then the hole can be quickly hidden with a license plate for street driving, trailering, or storage when not at the track.

Parts Included:

• Frame Cross Bar Mount

• Parachute Receiver Mount
• All Necessary Grade 8 Hardware (some kits reuse factory hardware)


We also highly suggest picking up our Parachute Essentials Kit when ordering. This gives you a billet end cap for your cable to avoid snags that would prevent the parachute from deploying as well as a cable holder and Remove Before Flight Flag

https://www.motionraceworks.com/products/motion-raceworks-parachute-essentials

If you are interested in some optional parts with the parachute mount, please check out the links below for info or purchasing. Refer to the picture chart above for parachute sizing and specifications.

Optional Parts:

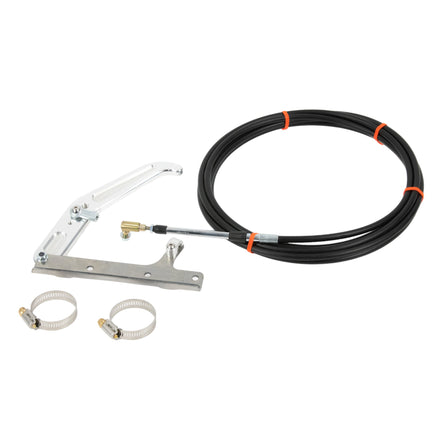

• Billet Handle & Cable Release Kit

• Stroud 420 Comp Eliminator Pilot Spring Parachute

• Stroud 430 Pro Stock Pilot Spring Parachute

• Parachute Cable Holder



Install Notes:

To install, simply remove bumper cover, remove bumper support by unbolting on each side. Bolt the main bar where the old support was. Temporarily remount bumper cover, trace where the receiver will go through from the back side of the bumper cover, drill your hole. Slide the insert mount back in, tighten bolts and you are done.


Watch this video to learn how to cut the perfect hole through your bumper when mounting your parachute mount
