16-22 Ford Mustang S550 Rear Drag Racing Brake Kit (Reusing Factory Hubs) - 001-0297-1

TBM Brakes

001-0297-1

TBM Brakes - 001-0297-1

$1,599.00

Starting at $149 /mo with
View full details

Racing Use Only, Not Legal for Road Use

16-22 Ford Mustang S550 Rear Drag Racing Brake Kit (Reusing Factory Hubs) - 001-0297-1

Note: This Kit retains usage of factory ABS functionality though we do not suggest running ABS in conjunction with racing brakes

Note: These brakes are specifically designed to clear 15" double beadlock wheels without issue.

Note: These will not work with 2020+ GT500 Rear Knuckles

This Kit requires usage of an included drill fixture to drill and tap holes in factory spindles for use with supplied bracket. This kit can be purchased separately as well   12-0550. For install/usage instructions on drill fixture: Click Here

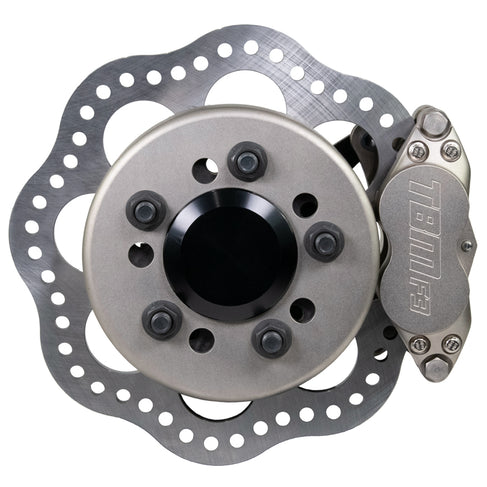

Includes:

  • (2) F3 4 Piston Calipers  002-0056SSP-1 / 002-0056SSP-2
  • (2) Billet Aluminum Rotor Hats
  • (2) 11.50x.375 Revolution Rotors  3-1150375D
  • (2) Mounting Brackets
  • #1 Standard F3 Pads 6-1020W
  • Hardware Kit
  • Drill Fixture for modifying factory spindles/knuckles

**Note: Factory Spindles need to be drilled and tapped/modified to work with mounting bracket. Drill fixture included

These clear most 15" drag wheels w/ or w/out beadlock rings.

Installation of this kit will require 3AN lines that are sold separately

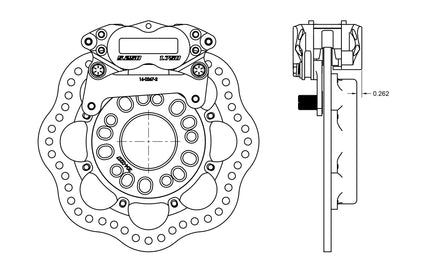

For wheel offset/clearance questions, please see the attached drawing

Watch Drill Fixture Install Video

⚠ WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

*Please use red Loctite on all rotor bolts*

We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.
