RIFE Double Sensor 2 + 2 Expandable Block (Custom Config) READ DESCRIPTION WHEN ORDERING

 (2)

RIFE - RIFE-2PC

Racing Use Only, Not Legal for Road Use

$329.00

Starting at $31 /mo with
View full details

RIFE Double Sensor 2 + 2 Expandable Block (Custom Config) READ DESCRIPTION WHEN ORDERING

2 Pressure/MAP Sensors, 2 expandable M5 inputs, one wiring plug

These are built to order for your specific vehicle

NOTE: Please put in notes section of order your 2 sensor choices.  Notes should include a list with what sensor and 3AN male or 1/8" NPT for each. We cannot fulfill your order until we have this info.

This block includes 3 additional Analog inputs! These side mounted M5 analog inputs can be used for connecting any 0-5V analog sensor or Temperature sensor. 5V and sensor ground are supplied through connector

RIFE Sensor Blocks Feature:

  • Higher accuracy
  • Faster response
  • One distributed sensor Ground feeds up to 4 sensors
  • One distributed sensor Power feeds up to 4 sensors
  • Sensor Power/Ground are circuit protected
  • Dual Vibration isolated sensors
  • Choose -3 AN or 1/8 NPT connections
  • Deutsch DT 6 pin connector
  • Sealed to IP69
  • Billet aluminum construction
  • Sensors Utilize Industry standard 0-5V output
  • Compatible with all ECU’s/data loggers
  • Flexible mounting options
  • All wetted parts are 316 stainless, Viton or anodized aluminum
  • 1 Bar, 2 bar, 3 Bar, 4 Bar, 5 Bar, 7 Bar, 10 Bar MAP sensors
  • 60psi, 100psi, 150psi, 200psi, 300psi, 500psi, 1600psi
  • Compatible with Oil, Fuel (Gasoline and Methanol), Transmission Fluid, CO2, Compressed Air, Water, Coolant and more!
  • *Does not include harness. Click here to order the harness

    For replacement sensor pods: Click Here

    For M5 Cable Options: Click Here

     *Note: Unlike most Motion Raceworks family of products, these sensors like most electronics are not 100% Made in the USA. While we diligently attempt to source all US electronic components, we have not been able to source everything domestically.

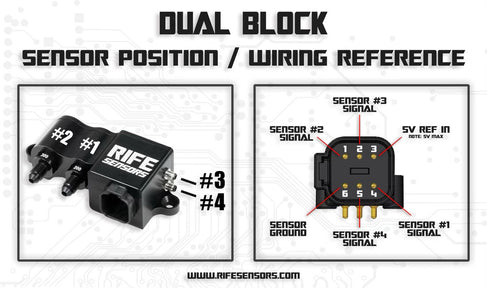

For Wiring/Sensor Location Info See the Picture Below

Dual RIFE sensor Wiring and Sensor Location Chart

For Sensor Scaling Data: Click Here

Watch this video on the internals and the unique features of this sensor solution!
