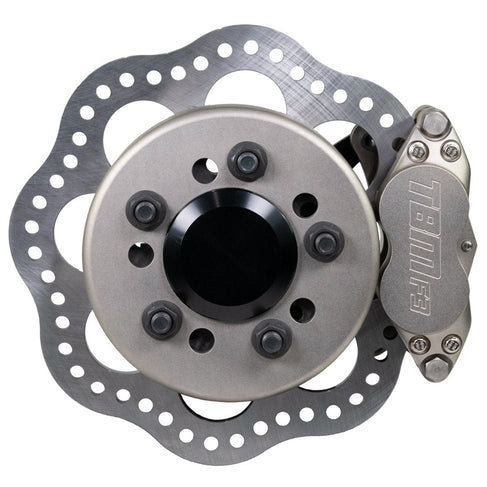

Sportsman HD (Big Ford Old Housing Ends) F3 4 piston Drag Brake Kit
TBM Brakes
003-0366-1
TBM Brakes - 003-0366-1
$2,229.00
Racing Use Only, Not Legal for Road Use
Sportsman HD (Big Ford Old Housing Ends) F3 4 piston Drag Brake Kit 003-0366-1
For 2.332" and 2.500" Axle Offset
Rear Brake Instructions: Click Here
Note: These brakes are specifically designed to clear 15" double beadlock wheels without issue.
TBM Brakes afford racers one of the lightest and highest performing brake setup on the market. These brakes have proven themselves in every realm from Top Fuel Dragsters to Hot Rod Drag Week and everything in between. TBM is quickly becoming the winning edge in brake system design. With a revolutionary design TBM Brakes has lower drag and friction than competitors. Lower rolling resistance means quicker ET and better overall performance as well as longer pad life.
Kit Weight: 22 lbs
Please note: For weight savings and ability to change/adapt to combinations we incorporated all of the following bolt patterns into one hat.
Bolt Patterns Included
- 5x4.50 1/2" Stud (Ford/Mopar)
- 5x4.50 5/8" Stud (Ford/Mopar)
- 5x4.75 1/2" Stud (GM)
- 5x4.75 5/8" Stud (GM)
- 5x5 5/8" Stud

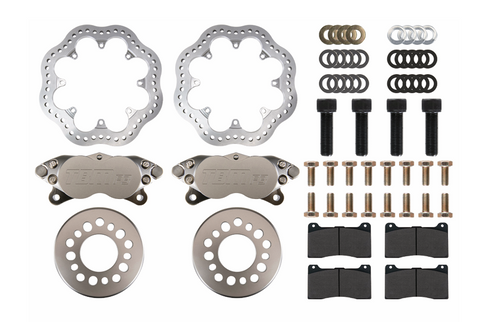

Included in this kit:
- (2) F3 Calipers 002-0192SSP-1 / 002-0192SSP-2
- (2) 11.500"x.500 rotors 3-1150500D
- (1) Set pads #1 compound standard track pads 6-0102W

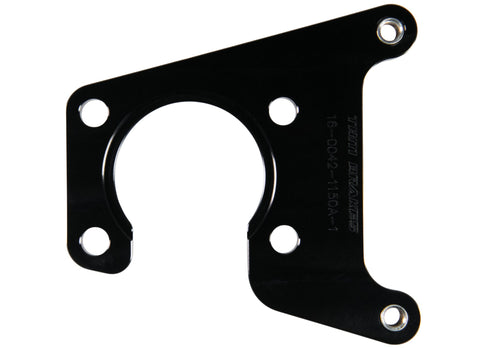

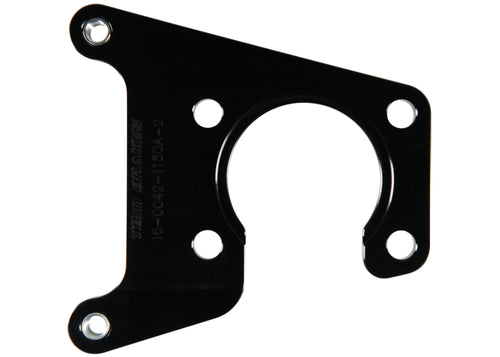

- (2) Caliper mounting brackets 16-0042-1150-1 / 16-0042-1150-2
- (2) Hats 204-0222
- Mounting hardware kit 011-0187
*Please use red Loctite on all rotor bolts*
We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.

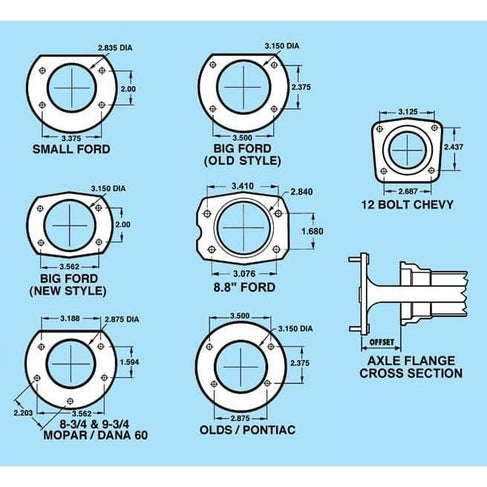

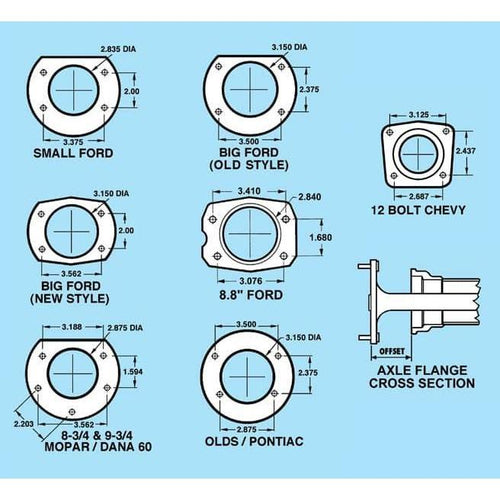

TBM Rear Drag Brakes are specifically designed to have maximum clearance for 15" double beadlocks offering best in class clearance they clear nearly every beadlock on the market. Use this reference diagram for clearance concerns.
