RIFE DTM 4 Sensor Hub (5v and Sensor Ground Distribution)
SALE
RIFE DTM 4 Sensor Hub (5v and Sensor Ground Distribution)
RIFE
52-1503
RIFE - 52-1503
In Stock - More than 10 available
Ships Today When Ordered Before 2pm CST
$198.00
Please select all options
Racing Use Only, Not Legal for Road Use

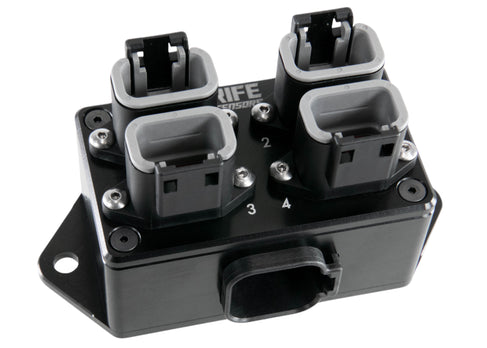

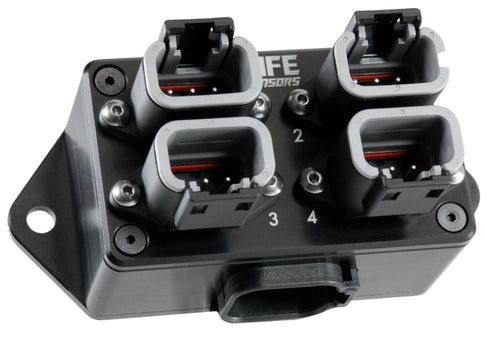

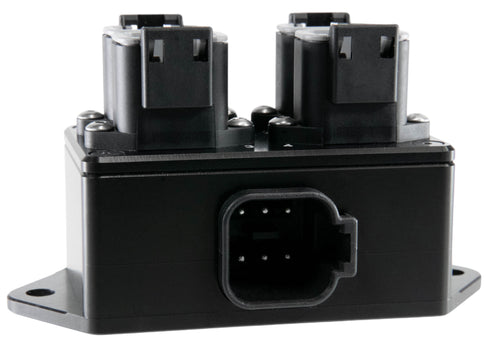

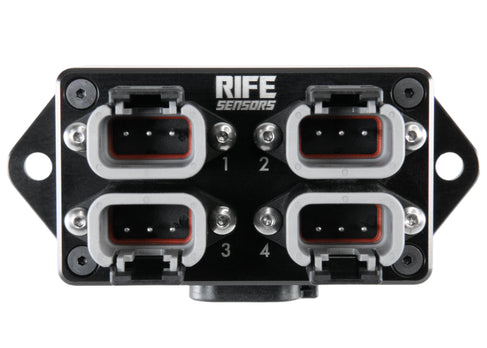

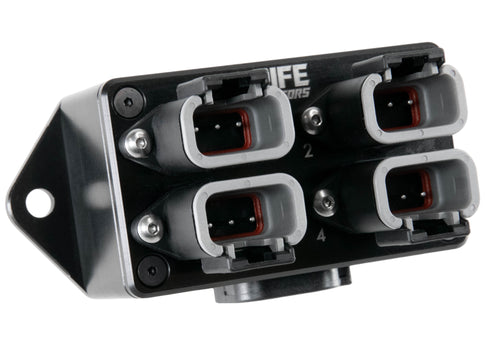

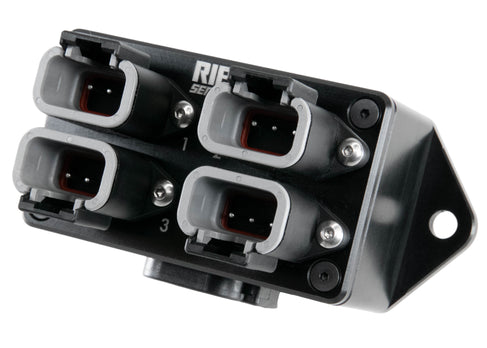

RIFE DTM 4 Sensor Hub (5v and Sensor Ground Distribution)
Wiring sensors can be a big task, especially with limited unused 5v reference and sensor ground availability in most ECUs. The RIFE DTM 4 sensor hub fixes this issue and creates an easy to wire solution which internally distributes powers and grounds. This means you can run up to 4 inputs with one single 5v reference and one sensor power without splicing and breaking out the wiring.
This hub allows you to create a location specific branch for wiring which not only distributes power and ground but also allows for a single shielded cable run for simple, lightweight, and easy wiring while being serviceable and easy to add on or change at anytime.

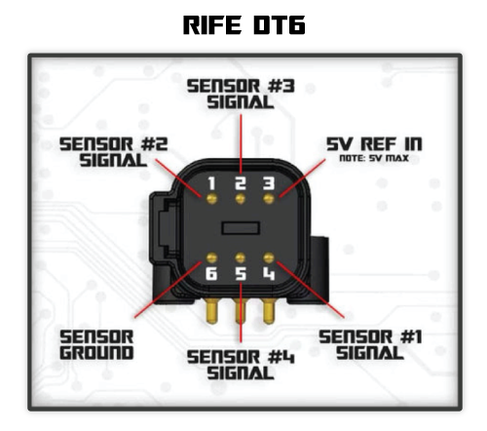

Main Deutsch DT 6 pin wiring plug layout:
- 5v sensor reference
- sensor ground
- Sensor Input 1
- Sensor Input 2
- Sensor Input 3
- Sensor Input 4
Features:
- Billet machined and anodized case
- (4) 3 wire DTM style Input connectors
- (1) 6 wire DT style Main connector
- (4) Distributed 5v signals
- (4) Distributed ground signals
- Internally Board protected circuitry
Optional:
- Wiring Connector Kit (includes 4 DTM connectors with pins (52-1732 x 4) and 9 ft DT 6 wire main flying lead harness (52-1034 x 1)
Roll Bar Mount : Click Here

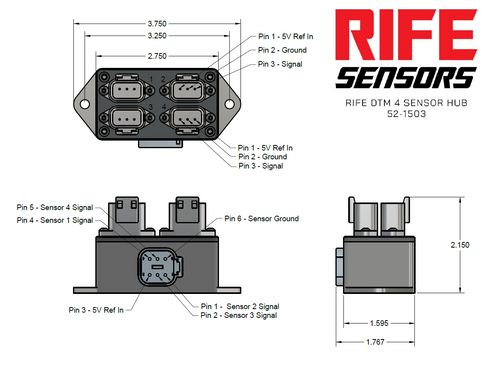

Sizing and wiring reference
Customer Reviews
Overall rating: 4.7 / 5 from 10 reviews.

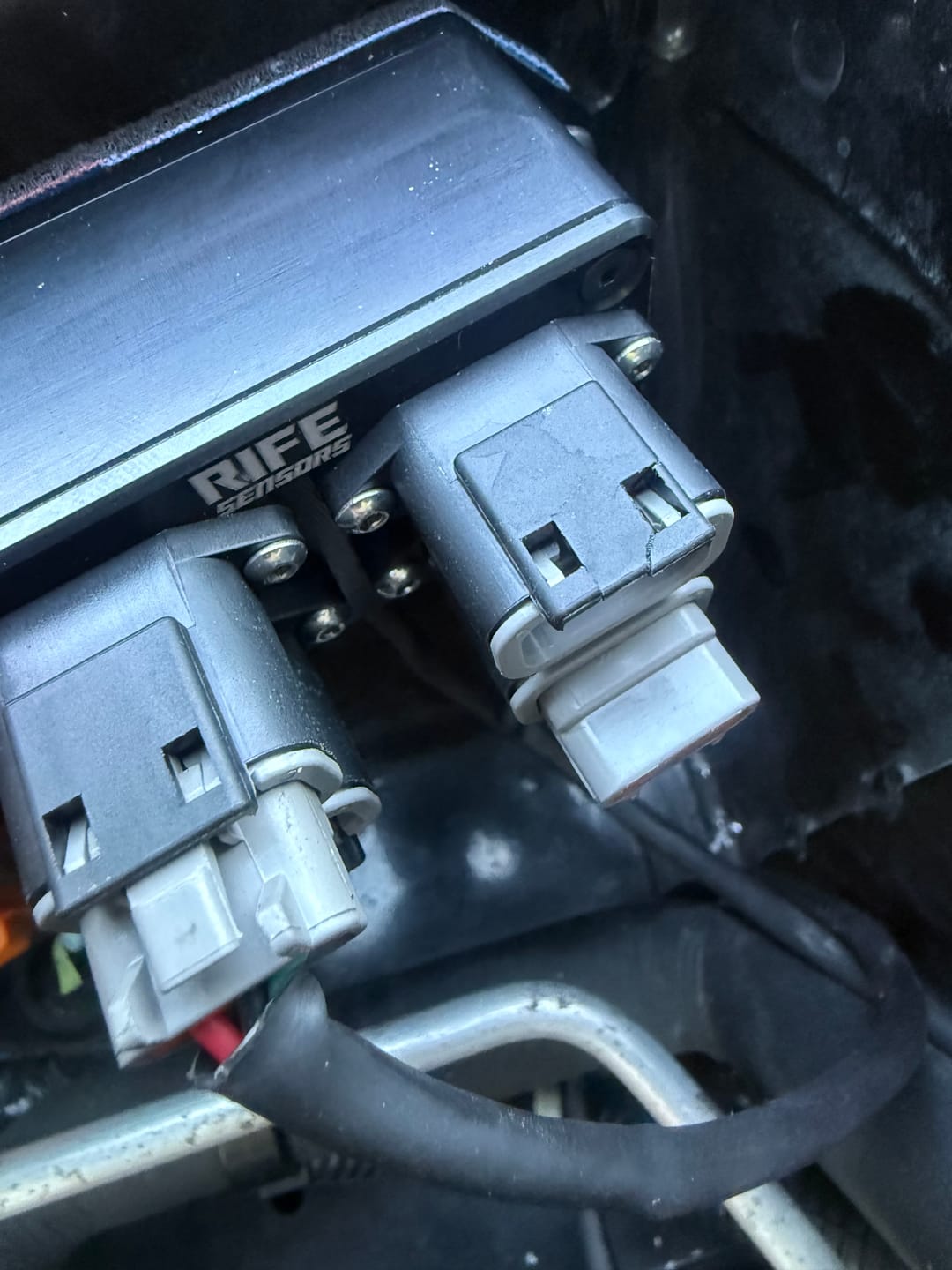

Product came cracked or broke when I put in a Dtm connector, I didn’t notice till I installed it. Motion said they have 3 sets of ppl looking at the product so it’s almost impossible it’s their fault. Now i’m stuck with a port that is certainly going to be useless when it fully breaks. Currently building a car and needed a full sensor suite so I guess I will be going to a different manufacturer. Be sure to inspect all you motion items before even opening the package for their warranty to mean anything
The remote sensor hub is genius!

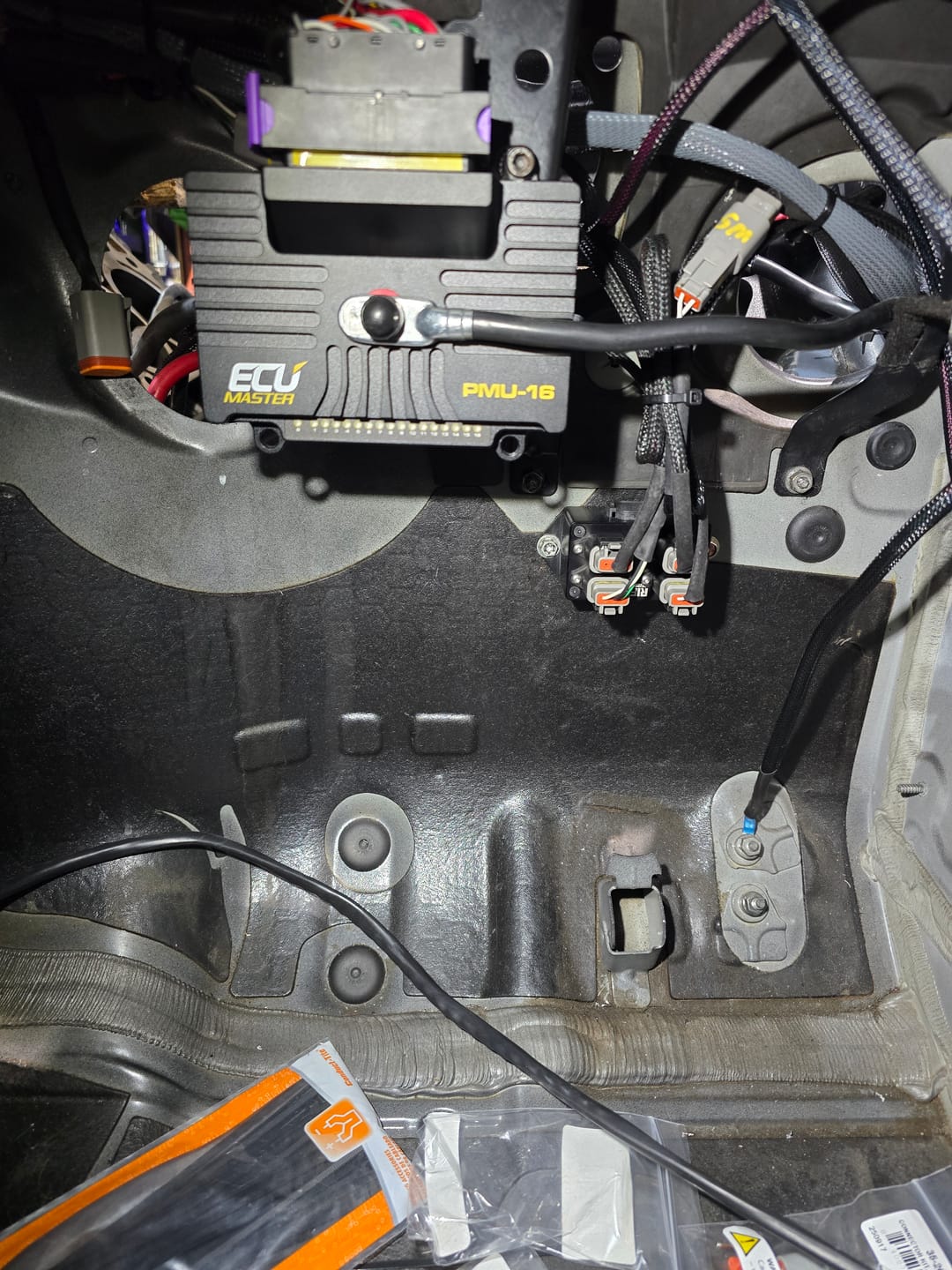

Very nice to have when wiring in a new ECU. I wired my Link G4x Xtreme direct to oem harnesses in my Lotus, but for the aftermarket bits, this is amazing. I just wish there were a DTM 8-pin version for 6 sensors.
