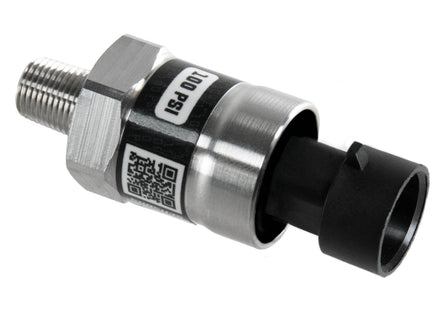

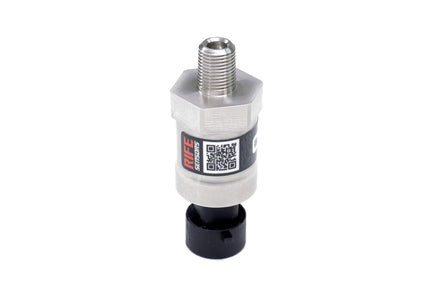

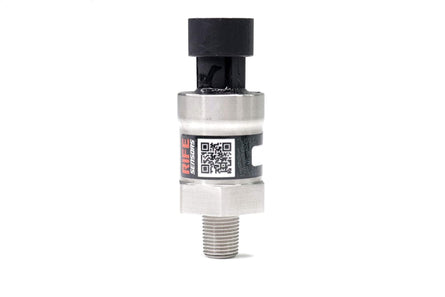

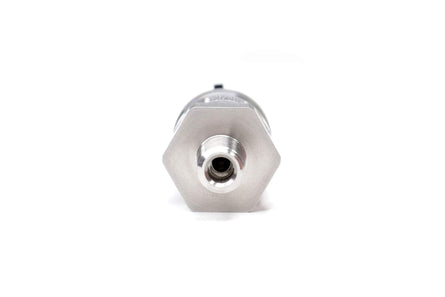

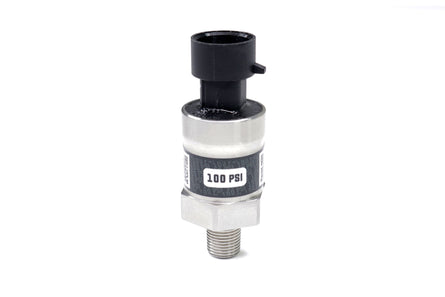

RIFE 100 PSI Pressure Sensor Transducer 1/8" NPT
SALE
RIFE 100 PSI Pressure Sensor Transducer 1/8" NPT
RIFE
52-100PSI
RIFE - 52-100PSI
In Stock - More than 10 available
Ships Tomorrow, When Ordered Before 2pm CST
$198.00
Please select all options
Racing Use Only, Not Legal for Road Use
RIFE Sensors are designed to perform in the harshest environments while delivering world class data and accuracy. These sensors are specifically designed to upgrade your current 100 psi sensor and operate in the harsh environments found in drag racing, road racing, offroad racing, marine, street performance ,and more. RIFE sensors are machined, built and hand tested in the USA with extreme quality control to provide out of the box performance!
RIFE Pressure Transducer Features:
- Motorsports grade sensor
- Ultra Fast Response Time
- Exceptional Accuracy: Each sensor hand tested and quality control to best in class +/- 0.5% accuracy out of the box
- Stainless steel internal diaphragm for increased durability
- Floating internal sensor core increases durability compared to traditional sensors with fixed mounting
- 0-5v sensor compatibility
- 0-100psi pressure range
- Bodies machined in Dewitt, IA
- All sensors Hand built in Dewitt, IA
- Compatible with Fuel, Oil and Coolant including Transmission Fluid, Gasoline, Oxygenated Fuels, Methanol, Engine Oil, Coolant, Water, Air, CO2, Nitrous Oxide, Brake Fluid and more!

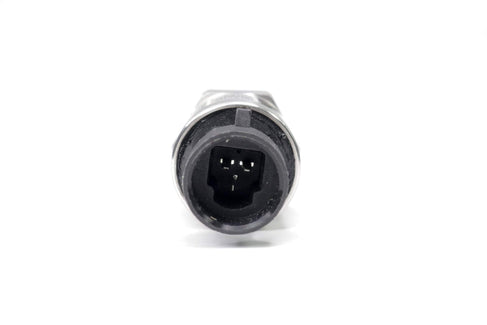

- Utilizes industry standard 3 pin Delphi connector
These screw in Pressure Transducers utilize the same state of the art proprietary sensor core used in our RIFE pressure blocks, with a specially designed body. These stainless sensor bodies hold the sensor core on an O-ring to better isolate the sensor from engine and road vibrations to create a more durable and dependable sensor.
This 5v style pressure transducer works great with Holley EFI, Haltech, Fueltech, MS3 Pro, Racepak, and more!
This sensor interchanges with Holley 554-102 without changing any calibration or tuning info, simply unplug and unscrew your Holley sensor and screw in and plug in your RIFE sensor.
All RIFE Pressure Sensors are quality checked for functionality, sealing/leaks, and are held to accuracy of +/- .5% in order to provide the end user with the best possible data on the market!
These sensors utilize a standard 3 pin Delphi connector for utilization with all popular EFI harnesses. Connectors can be found below
Flying Lead Option: Click Here
Crimp Connector Option: Click Here
This sensor is a direct replacement with no calibration or scaling adjustments to be made when replacing the following 100 psi sensors and uses the same connector.
- Holley 554-102
- Autometer #2246
- AEM 30-2130-100
RIFE pressure transducers have been tested and are compatible with Trans Fluid, Gasoline, Oxygenated Fuels, Methanol, Oil, Coolant, Water, Air, CO2, Brake Fluid and more!
*Note: Unlike most Motion Raceworks family of products, these sensors like most electronics are not 100% Made in the USA. While we diligently attempt to source all US electronic components, we have not been able to source everything domestically.
