Motion Raceworks 16 Tooth High Def Driveshaft Speed Wheel (Ford 9")

RIFE

18-01001-F9

 (29)

RIFE - 18-01001-F9

$189.00

Starting at $17 /mo with
View full details

Racing Use Only, Not Legal for Road Use

Motion Raceworks 16 Tooth High Def Driveshaft Speed Wheel (Ford 9")

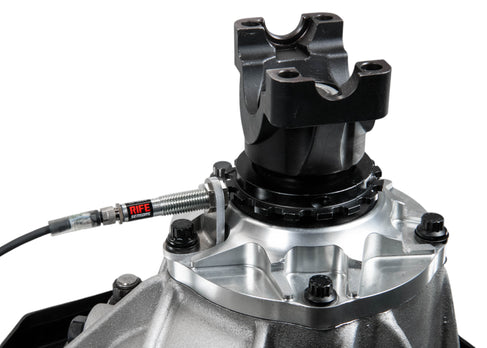

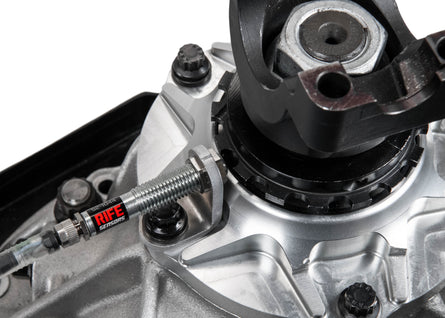

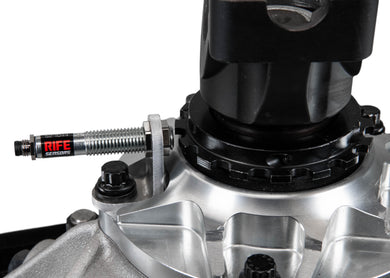

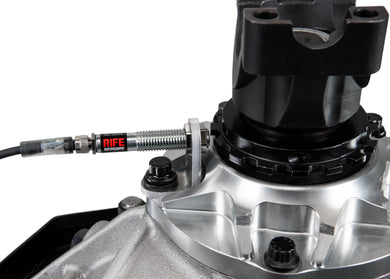

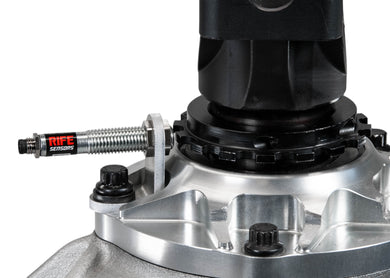

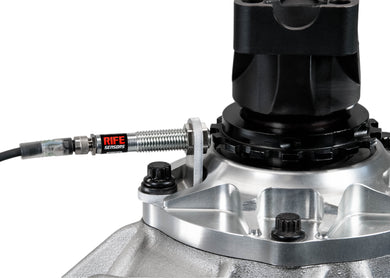

Motion Raceworks High Resolution Driveshaft Speed Wheel offers amazing quality driveshaft speed data with a high resolution approach to help smooth out your graph and deliver accurate data to your recording device or traction control. Our billet steel collar offers 16 tooth pickup points for a hall effect pickup that reduces noise and allows for all of the benefits of a square wave signal.

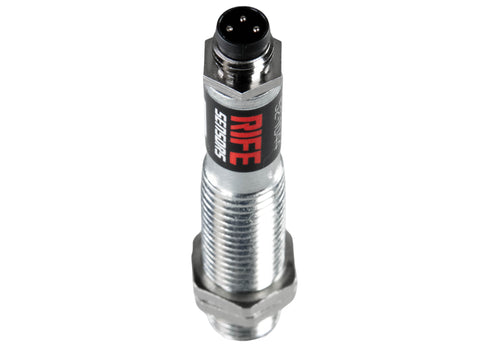

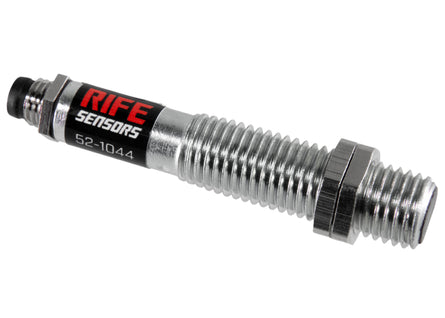

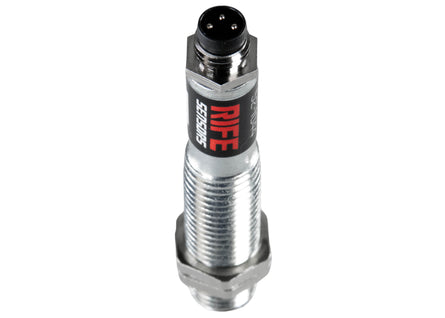

This kit utilizes the new industry leading RIFE High Def M8 Driveshaft sensor for amazing data and consistency.

Included:

  • Billet steel coated driveshaft wheel (choose size in options)
  • Aluminum 90 degree bracket

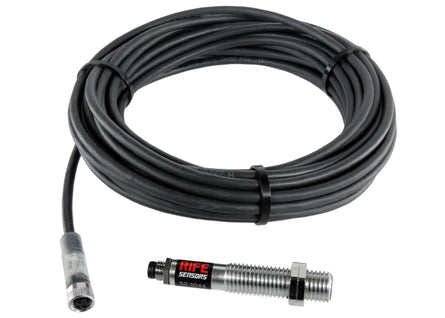

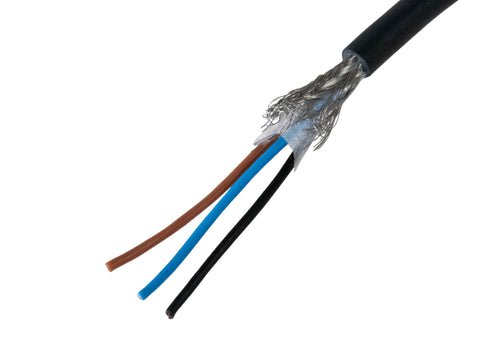

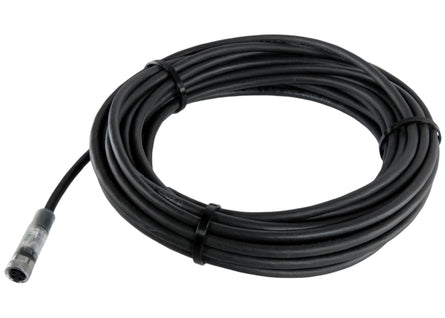

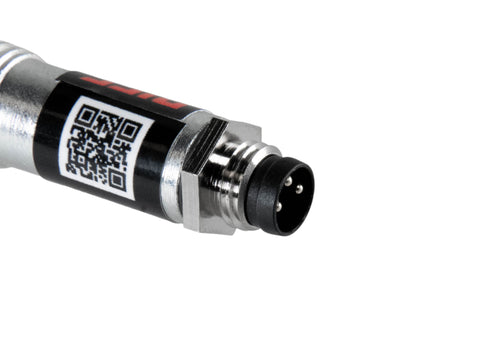

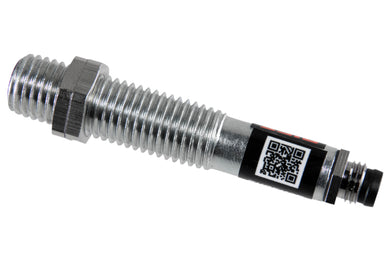

  • RIFE High Def M8 Hall Effect Sensor w/ LED Shielded Cable

MRW driveshaft wheel can be utilized with nearly any data collection system as well as any EFI system. As long as your system allows for a hall effect pickup you are good to go! This collar comes with ID for all standard pinion yokes produced by nearly all manufacturers. The sizes below reflect the flat surface OD on your pinion which will match the collar ID.

1.812: Commonly Strange Small Pinion 9"

1.875: Commonly Moser Small Pinion 9"

2.125: Commonly Strange Big Pinion 9"

2.187: Commonly Mark Williams Big Pinion 9"

Due to the wide variety of positions and different rearend styles, brackets are offered separately and currently only available for 9" center sections.

For installation instructions:  CLICK HERE

For Sensor Wiring and FAQ: Click Here

Comes with 3 different pullup resistors for different installs:



1k: Yellow 5v reference

2.4k: White 12v reference

3k: Orange 16v reference



See our Motion360 Tech Series on the High Def Driveshaft Sensor
