Plumb an active catch can into your F150 Coyote with this Motion Raceworks closed system Active 2 stage catch can kit. The Motion Raceworks active catch can kit is designed to create the best of both worlds when it comes to PCV. Our Active two stage catch can acts as a sealed system under normal driving conditions featuring a PCV check valve as well as an active valve on the top. This means that under normal driving the crank case pressure will flow through the engine and oil will collect in the can by knocking oil out of the crank case pressure charge. This is accomplished using a complex baffling system and vacuum source from the engine to draw fresh air through one side of the valve cover (filtered by an filter intake pipe like factory), out the other valve cover and into the catch can.

With this closed system kit, when pressure is built up and under spirited driving or racing the pressure is able to be released out of the top of the catch can back to the intake for a true no smell operation. When returning to normal driving the smelly air is contained back in the catch can.

This kit is recommended on applications where you wish to replace factory catch can systems with a more comprehensive baffling system that is still fully contained and "closed system", perfect for vehicles where you wish for no smell.

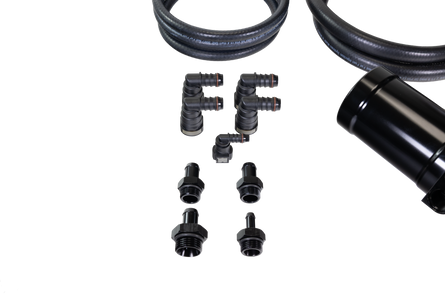

This kit contains the following items:

• (1) Active 2 Stage Catch Can
• (1) Rotating active catch can closed system top
• (1) 10 orb to 5/8" hose barb connection fittings for catch can to valve cover
• (1) 10 orb to 3/8" hose barb connection fittings for catch can vacuum
• (1) 12 orb to 5/8" hose barb connection for active top
• (4) 5/8 factory quick connect 90 degree barb fittings
• (1) 3/8 factory quick connect 90 degree fitting for intake
• (1) 6 ft 5/8" rubber hose sections
• (1) 6 ft 5/8" rubber hose sections

Note: this kit is designed to work with the factory quick connect style fittings for factory valve covers.

This catch can is the results of years of building, refining, and optimizing N/A and Boosted combos. Featuring a dual internal baffling design, this can not only flows a high amount of air but keeps the filter and your engine bay dry from oil saturation due to poor can design.

One of the shortcomings of a typical can (including our own) is having fittings on opposing sides, and/or having the fittings clocked incorrectly.  This has been solved by having fittings coming out at 90°'s from the top of the can with a 180° clockable can by using our multiple bolt hole configuration top lid.  This means you can mount the can virtually anywhere in the engine bay and still have the fittings pointing in the correct orientation.

All cans come bright black anodized for a beautiful and durable finish.

Features include:

• 100% Made in the USA
• Billet Top/Bottom Hat and Barrel Design
• 180° clockable mounting
• Included zinc coated steel mount w/ hardware
• High Flow Made in the USA Filter
• Comes with bottom pet cock
• Dual -10 O-ring ( ORB ) outlets

Reference Sizing Chart for Catch Can: Please note that catch can is "clockable" in mounting.

***Note: reusing your factory fresh air source from air intake to (typically) driver side valve cover is adequate, however enough quick connect fittings and line are in this kit to create a new line from your intake tube to driver side valve cover. If replumbing on a factory or supercharged/turbo application, it is advised that your fresh air source comes from pre supercharger or turbo charger to create a non positive pressure air source. Failure to do this will result in inadequate or failed active catch can performance.
