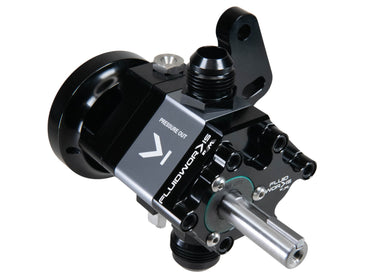

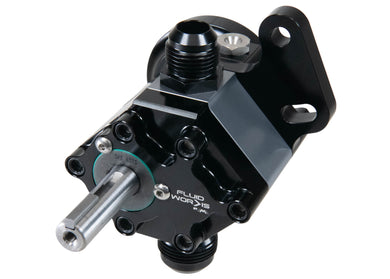

The Fluidworks LS external oil pump is a high performance solution designed to fix the inherent issues with factory oil pumps when used in high horsepower, high demand, higher than factory RPM applications. Featuring a very durable and high flow Fluidworks spur gear single stage pump, this system will not only increase flow, but will also increase pressure with an adjustable pump regulator that can in most cases more than double your oil pressure.

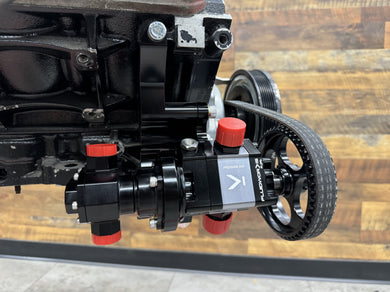

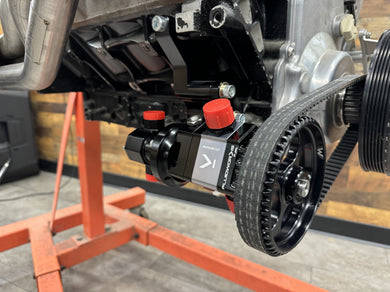

This pump is designed to bolt to the passenger side of an LS block and work in conjunction with an ATI balancer that has a 28 tooth rear HTD drive.

This kit is designed to be incorporated with a pan setup for external oil pump pickup, or a modified pan with a baffled pickup tube. Note: we recommend 16AN pickup if possible to allow proper feed to pump.

Bundle and Save with this kit!

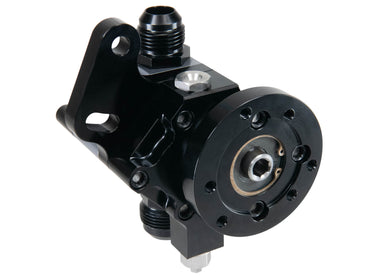

Note: This oil pump has 3 bolt/ 3/8" hex drive provisions to bolt on a mechanical fuel pump or cable drive for future or current fuel pump needs.

Note: You may need to alter oiling system/remove factory oil pump for this install.

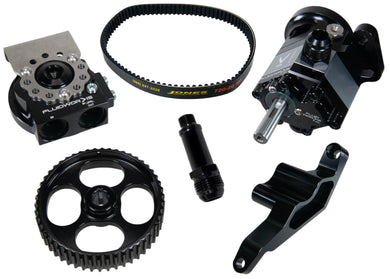

Included:

• Fluidworks 1.38" Pressure Section Single stage pump w/ Fuel Pump Drive on rear 5-101FP-5
• Passenger Mount billet bracket
• -16AN Smooth Taper Inlet Fitting
• -12AN Smooth Taper Outlet Fitting
• Fluidworks 5-901-1 Remote Oil Filter Relocation w/ 12AN fittings
• 56 tooth 20mm HTD Pulley
• Fluidworks 12AN LS 5-90012 Block Oil Feed Fitting
• 824-20 HTD Belt

Note: fuel pump clamp and pump not included

Learn proper Oil Plumbing Techniques and Routing. Watch this Tech Tip Tuesday!
