LS Coolant Port Adapter M12 to 1/8" NPT Female 34-00038
Motion Raceworks
34-00038
Motion Raceworks - 34-00038
In Stock - More than 10 available
Ships Today When Ordered Before 2pm CST
$29.00
Racing Use Only, Not Legal for Road Use
LS Coolant Port Adapter M12 to 1/8" NPT Female 34-00038
Designed to provide adaptability of your a LS to use an 1/8" NPT Male accessory in the factory coolant sensor location. This can be used to adapt an 1/8" NPT temperature probe as found in aftermarket gauges and can also be used to measure coolant pressure. The LS engine has one of these sensor locations on each side of the engine, so you can measure temperature or pressure at the same time without adding a T to the system.
This adapter will fit any LS1, LS2, LS3, LS7, LS9 4.8 5.3. 5.7 6.0 6.2 or 7.0 engine
Features:
To add a pressure sensor to your order: Click Here
Overall rating: 4.2 / 5 from 10 reviews.

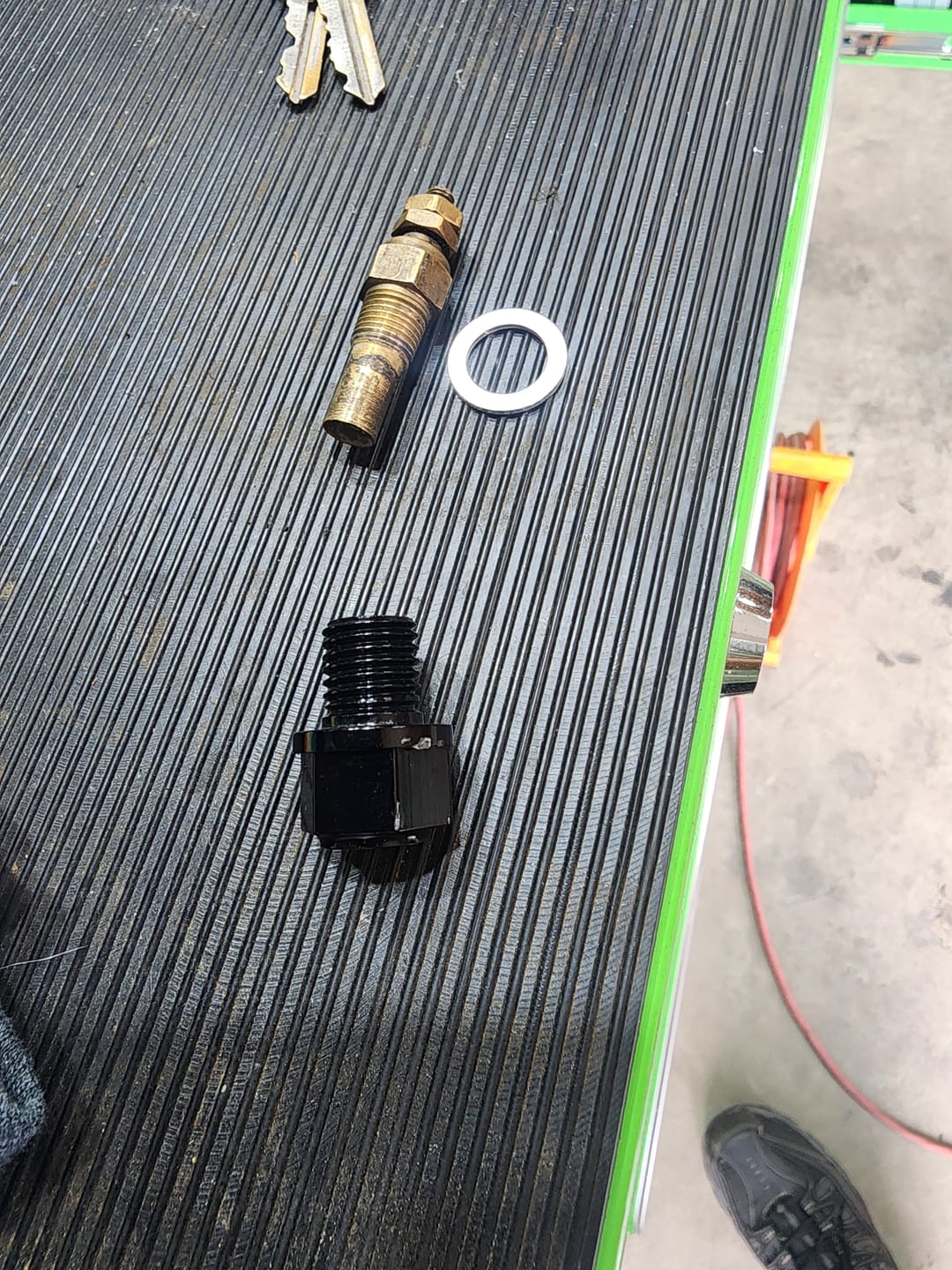

The part worked for me once I drilled the inside diameter enough for my sensor to slide in. This is the lowest clearance fitting I've used yet. Something to think about? My sensor is a autometer coolant temp sensor for my autometer gauges. No one has a direct swap. This adapter was the best just needed inside opened a bit for my application.
Worked as expected
Had to drill hole bigger inorder temp sensor can go in.
Fit great. Was super easy to set up coolant pressure monitoring on my engine. Ordering the rest of the DTM Rifes is on the list.
That’s awesome
I had to drill out to except my sensor...
Love your guys products!
Fits and looks nice, had to use a "short" autometer coolant sending unit to work properly but that's ok.
Great part
I adapted my speed hut gauges Coolant sensor into LS heads but had to drill the adapter out to fit it but still worked. Not a bad product but probably is sensor specific.
