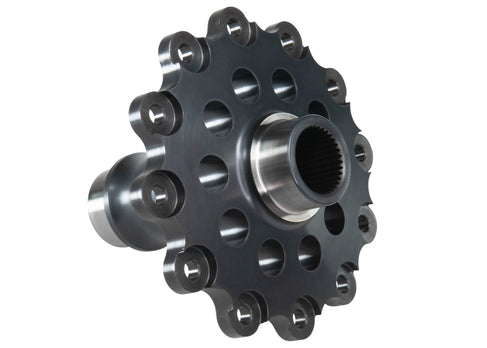

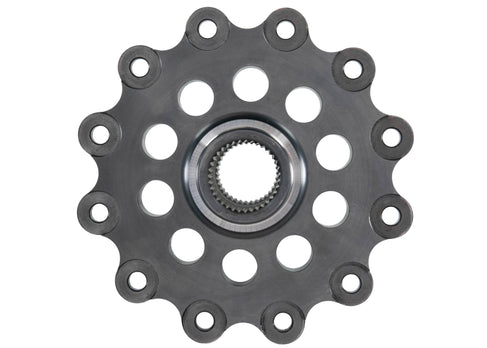

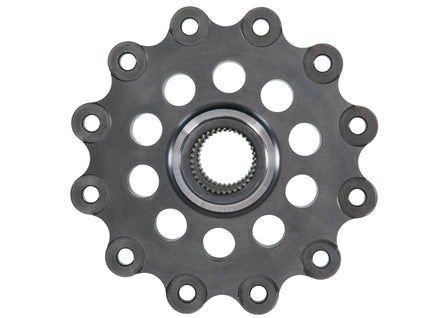

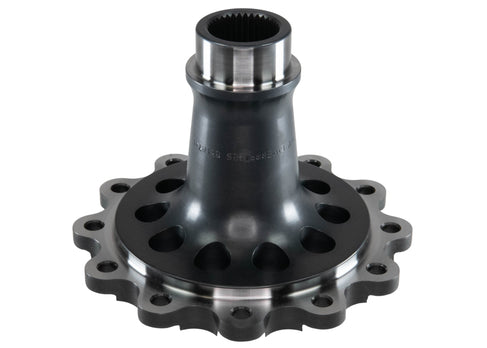

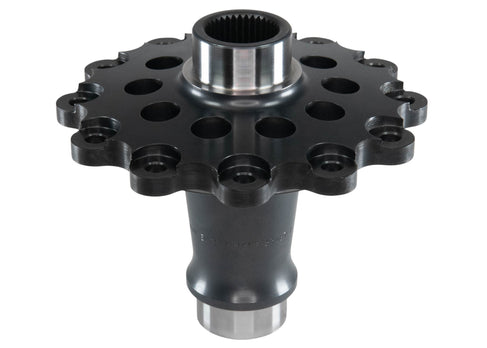

Dana 60 40 spline lightweight steel spool

MW 40-spline allows the largest and strongest axle available for the Dana 60. Due to the large spline, 58505 wheel bearings and proper housing ends are required For use with 4 series gears, (4.56 to 7.17 Dana Spicer Manufactured gears) (4.10 to 7.17 other manufacturers' gears). Manufactured from through hardened 4140 high strength steel. 16.5 lbs

*Dana 60™ is a trademark of Dana Limited. MW products are not manufactured or authorized by Dana.

Instructions: SB0046

Features:

• Cut for 40 Spline axles
• Works with 3.250" bearing carrier
• 4140 Through hardened steel
• Uses 1/2" bolts
• Weighs 16.5 pounds
• Made in the USA

Note: We recommend replacing ring gear bolts every time a new gear is setup. Correct MW part number for Ring Gear Bolts for this spool is 56900
