Fluidworks Remote Oil Filter- Top Load
SALE
Fluidworks Remote Oil Filter- Top Load
Fluidworks
5-900-1
Fluidworks - 5-900-1
In Stock - More than 10 available
Ships Today When Ordered Before 2pm CST
$290.00
Please select all options
Racing Use Only, Not Legal for Road Use
Fluidworks Remote Oil Filter - Top Load
Fluidworks oil filter mounts are designed to create a more usable and adaptable option for running a remote oil filter on your dry sump or external wet sump engine.
Installation Instructions: Click Here
Features:
- -12 ORB Female inlet
- -12 ORB Female outlet
- Top Mount Fittings for Ultimate Clearance
- (3) 1/8" NPT female ports for turbo/supercharger oil feed, oil pressure sensor, oil temperature and more
- Clockable Stainless Steel Mounting Bracket
- Accepts 13/16-16 inch threaded filter (similar to 51060R)
- Billet CNC 6061 Aluminum construction
- Black Anodized Finish
- Made in the USA
For other style remote oil filter mounts: Click Here
Note: we do not recommend measuring oil pressure ONLY at the filter housing. This may create a false reading compared to actual engine oil pressure. We always recommend taking pressure internal to the engine to verify actual flow is happening internal to the engine.
For ORB Fittings: Click Here
For 1/8" NPT Fittings: Click Here
For Oil Filter: Click Here
Customer Reviews
Overall rating: 4.8 / 5 from 4 reviews.

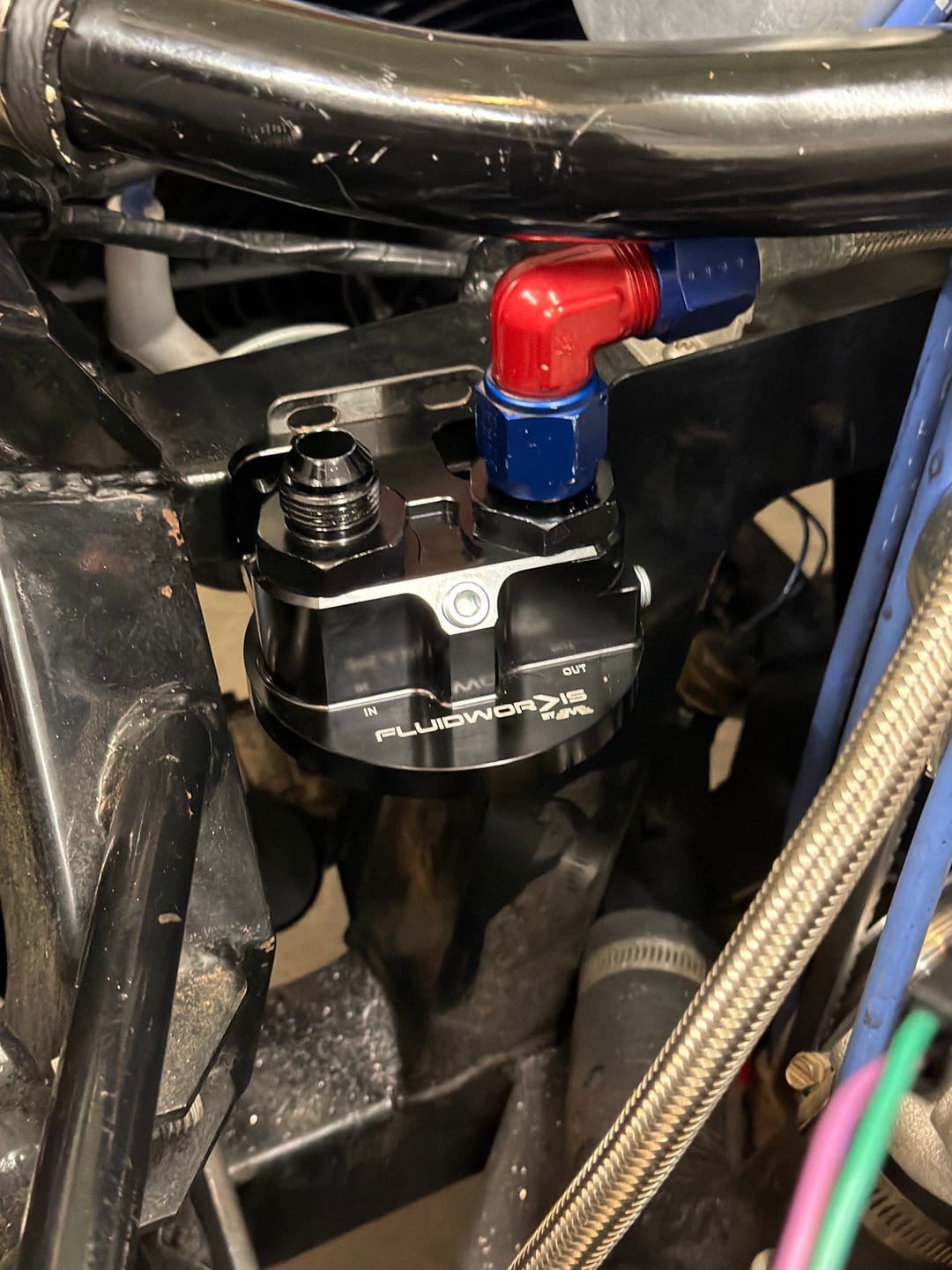

The adapter is very well made and anodized finish is great. The only issue I saw was metal inside the filter thread from the broaching process for the allen key. Took about 20 minutes with a dremel to clean it up. That is the only reason I didn’t give it 5 stars.
Excellent customer service and quality of parts. Well done.
great fitment and outstanding finishes
