Fluidworks Remote Oil Filter - Front Load Style
Fluidworks
5-901
Fluidworks - 5-901
$193.00
$228.00
You Save 15% ($35.00)
Please select all options
Racing Use Only, Not Legal for Road Use
Fluidworks Remote Oil Filter - Front Load Style
Fluidworks oil filter mounts are designed to create a more usable and adaptable option for running a remote oil filter on your dry sump or external wet sump engine.
Installation Instructions: Click Here
Features:

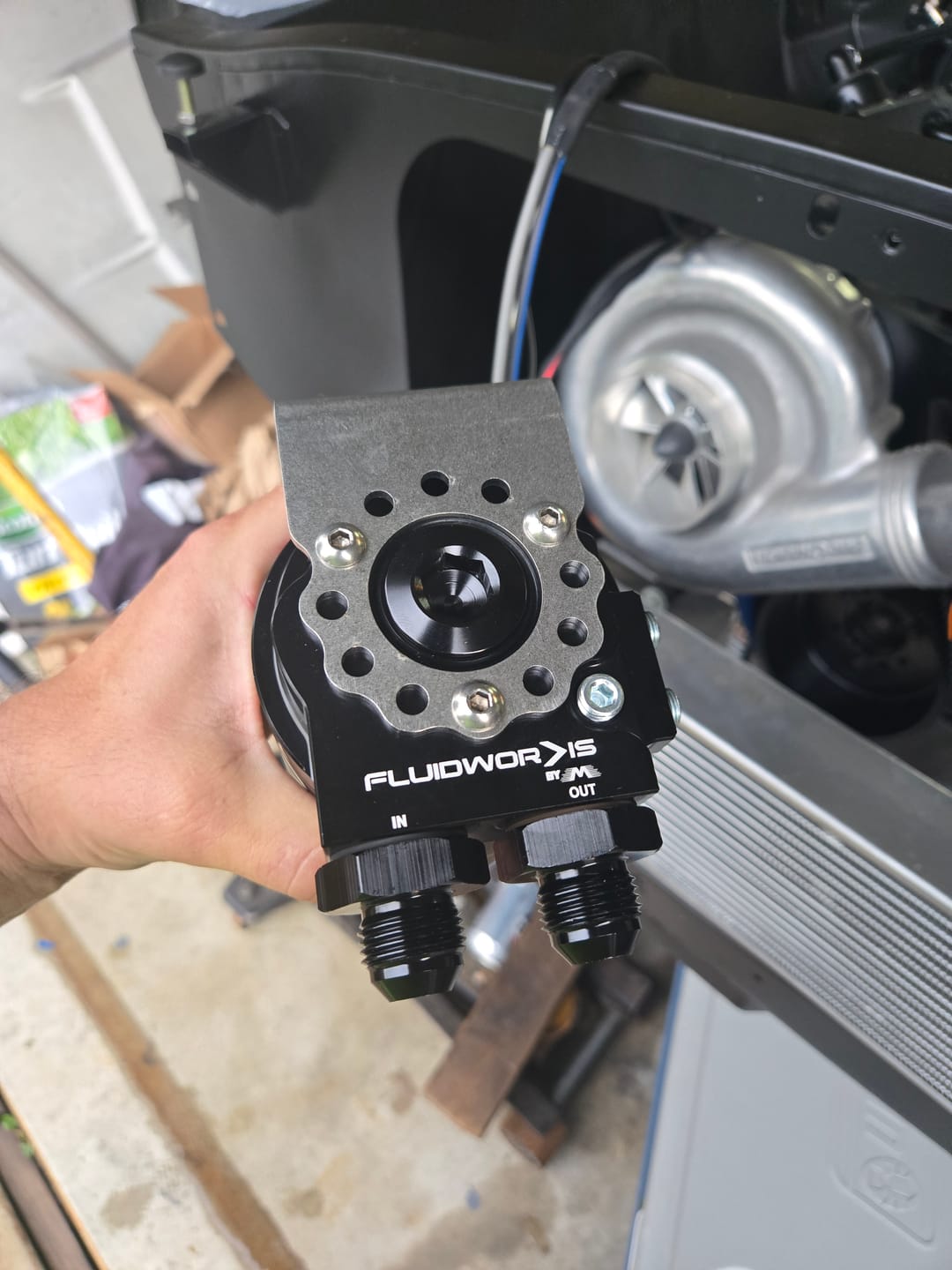

- -12 ORB Female inlet
- -12 ORB Female outlet
- Fittings Exit Front of
- (3) 1/8" NPT female ports for turbo/supercharger oil feed, oil pressure sensor, oil temperature and more

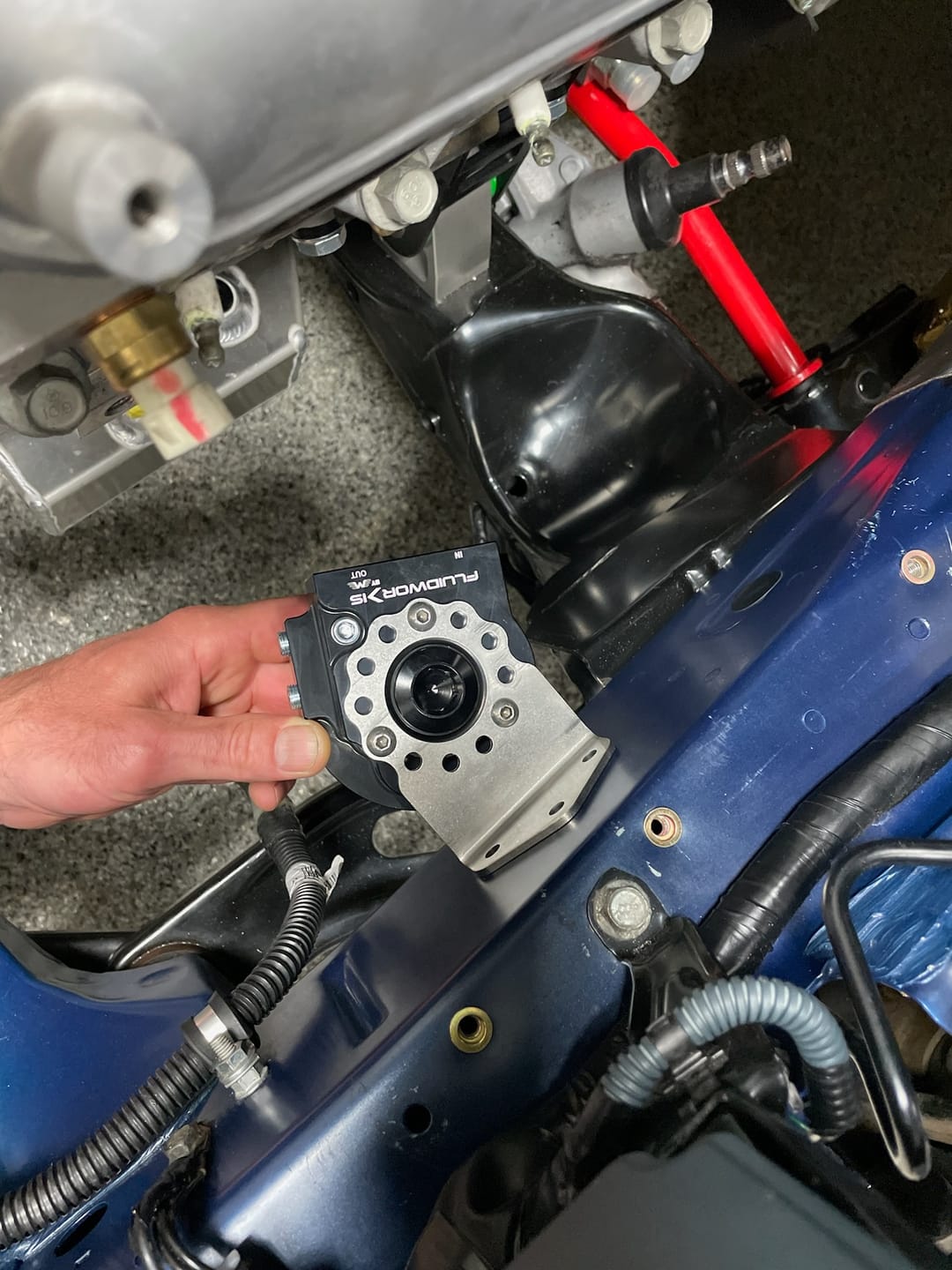

- Clockable Stainless Steel Mounting Bracket
- Accepts 13/16-16 inch threaded filter (similar to 51060R)
- Billet CNC 6061 Aluminum construction
- Black Anodized Finish
- Made in the USA
Note: we do not recommend measuring oil pressure ONLY at the filter housing. This may create a false reading compared to actual engine oil pressure. We always recommend taking pressure internal to the engine to verify actual flow is happening internal to the engine.
For Fittings: Click Here
