This all in one solution for your LS mechanical fuel system needs gives you a bolt on solution minus fuel lines and balancer to quickly convert your current or new build to large volume mechanical fuel delivery. This particular kit is designed to be used with an LS and a Corvette style 28 tooth ATI HTD hub which mounts on the rear of the balancer, info regarding this listed after included parts.

Our complete kit takes the guess work out of compatibility of filters, regulators, and pumps and gives you the easy button for a solution. Note: ATI hub and balancer will need to be purchased to drive this fuel system. We do not currently sell this hub or balancer, see notes below.

This system is compatible with gasoline, race gasoline, oxygenated race gas such as q16, ethanol, and methanol.

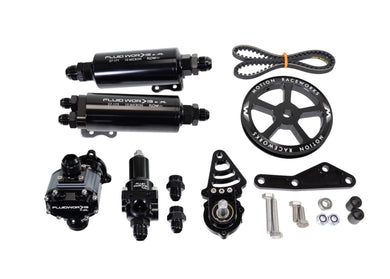

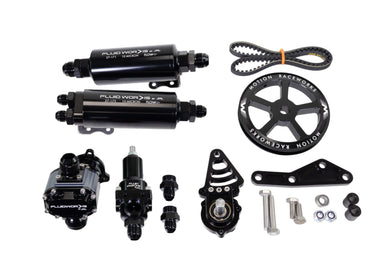

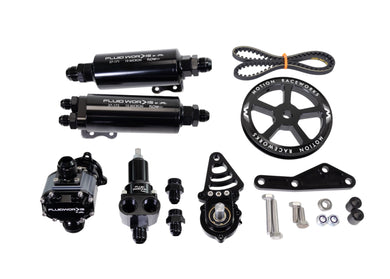

Included:

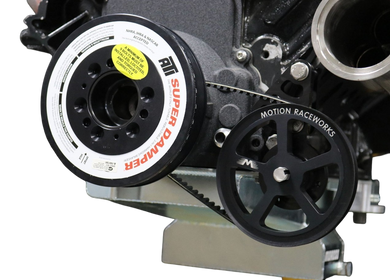

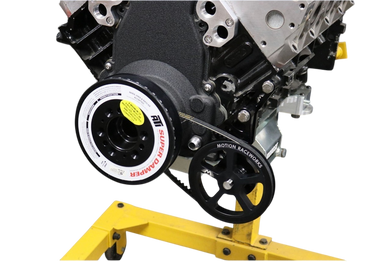

• Drive Side Mount bracketry & hardware w/ swinging /adjustable hex drive bracket(see pictures)

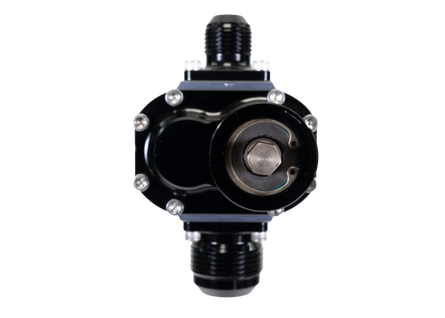

• Your choice of 6, 9, or 12gpm mechanical fuel pump (12AN inlet/10AN outlet)
• Slip collar for fuel pump
• 56 tooth HTD pulley
• HTD belt to work with 56 tooth pulley & ATI HTD hub
• 7-20gpm fuel regulator with -8AN outlets / -10AN return (choose from 90 degree, 180 degree, or front load inlets for regulator in options)
• 100 Micron pre filter 16 AN inlet / 16 AN outlet fittings
• 10 Micron microglass post filter w/ dual 8AN outlet fittings and 12AN inlet

Note: All mechanical fuel systems are including a 7-20gpm regulator. This regulator allows for high pressure regulation and is suitable for 6 gpm up to 20 gpm flow.

Note: ATI parts needed to work with this kit

ATI Hub Only: PN 91033a

ATI Balancer w/ hub: PN 917304

NOTE:  This system will not allow you to run AC drives in conjunction.  You need to order ATI HTD pulley rear hub or ATI balancer with HTD pre installed, none are included!
