Coyote 5 Stage Dry Sump Oil Pump Kit
Fluidworks
CoyoteKit5stage-1
Fluidworks - CoyoteKit5stage-1
$3,615.00
$4,253.00
You Save 15% ($638.00)
Please select all options
Racing Use Only, Not Legal for Road Use
Coyote 5 stage dry sump oil pump kit
Bundle and Save with this kit!
Coyote Modular engines are notorious for poor oiling characteristics when using the factory pump. Low flow and pressure make a tough environment for an engine to live at high horsepower levels and demands. The Fluidworks external wet sump kit gives you the tools needed to bolt on (minus hose creation) and correct this issue. This system works with Gen 1, 2, 3 Voodoo and Predator Coyote Ford engines.
Note: This oil pump has 3 bolt/ 3/8" hex drive provisions to bolt on a mechanical fuel pump or cable drive for future or current fuel pump needs.
Note: You may need to alter oiling system/remove factory oil pump for this install.

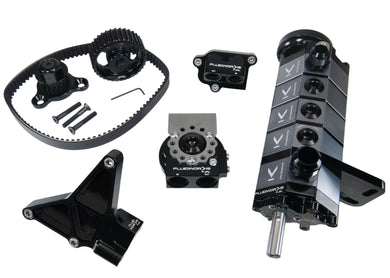

Included:

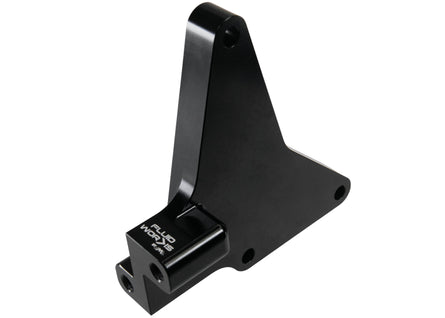

- Coyote Bolt on passenger oil pump mounting bracket w/ hardware

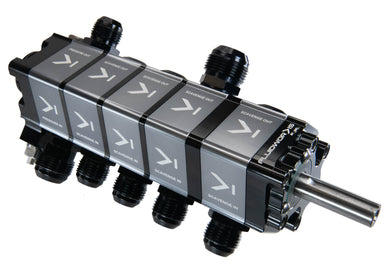

- Fluidworks 5 stage 1.380" Sections Dry Sump Pump Oil Pump w/ fittings
- Fluidworks Remote Oil Filter Mount (choose style in options below) includes -12AN fittings
- Fluidworks Coyote Block Mount Oil Feed Block Adapter (Fit Coyote Gen 1, 2, and 3 plus GT350 Voodoo and Predator GT500 blocks) (w/ plug and -12AN Fitting)
- Fluidworks 36 Tooth HTD pulley for Oil Pump
- 720mm 20mm wide HTD belt
- Front HTD pulley Mandrel for the below ATI part numbers
- 918047
- 918047N
- 918052
- 918053
- 918048
- 918048N
- 918036
