Davies Craig EWP150 Aluminum Electric Water Pump (12V) 8165
Davies Craig
8165
Davies Craig - 8165
$307.00
Please select all options
Racing Use Only, Not Legal for Road Use

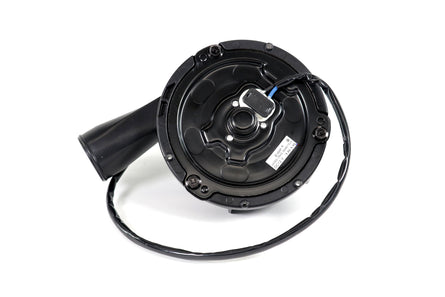

Davies Craig EWP150 ELECTRIC WATER PUMP (ALLOY) (PART #8165)
The EWP150 Alloy 12V is available for purchase in following options:
Muscle up your engine cooling system with the Davies Craig EWP® 150 alloy Electric Water Pump. Like all EWPs, this advanced unit is designed for remote mounting in the engine bay to satisfy those higher horsepower, turbocharged, supercharged and ‘worked’ engines which develop excessive heat.
The compact EWP®150 alloy unit is manufactured with -16AN ORB internal inlet and outlet threads for neat, tight screw-in fitting applications.
This rugged alloy hi-flow electric water pump is designed to complement or replace the engine’s existing mechanical water pump. This essential performance accessory increases power to your vehicle’s drive wheels and improves coolant temperature control.
| Technical Specifications | |
| Voltage | 12 Volt Pump |
| Operating voltage | 3V DC to 15V DC |
| Maximum current | 10A @ 13V |
| Flow rate (max) | 150 L/min (39.63 US gal/min) @ 13V DC |
| Operating temp. | -40° to 130°C (-40° to 266°F) |
| Pump design | Clockwise centrifugal with volute chamber |
| Pump weight | 1,170 grams (2.6 lb) |
| Pump material | Aluminium (Powder Coated Black) |
| Burst pressure | 500 kPa (72.5 psi) |
| Seal | Ceramic face seal |
| Self Priming | No, none of our pumps are self-priming |
| Fits hose sizes | 35mm to 51mm (1⅜” to 2”) Inlet & Outlet -16AN ORB |
| Push-On fitting Size |
EWP Inlet & Outlet 38mm
|
