2011-24 F150 Rear Drag Brake Kit F3 4 Piston Calipers (Stock Housing Ends) 003-0342-1
TBM Brakes
003-0342-1
TBM Brakes - 003-0342-1
$2,106.00
$2,340.00
You Save 10% ($234.00)
Please select all options
Racing Use Only, Not Legal for Road Use

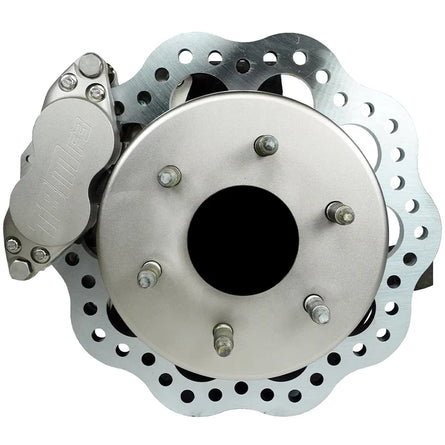

2011-24 F150 Rear Drag Brake Kit F3 4 Piston Calipers 6x135mm BC (Stock Housing Ends) 003-0342-1
Note: NO modification needed to fit rear brakes on stock axles
Note: INCLUDES Brake Lines
Instructions: Click Here
**Saves over 30lbs**
TBM Brakes afford racers one of the lightest and highest performing brake setup on the market. These brakes have proven themselves in every realm from Top Fuel Dragsters to Hot Rod Drag Week and everything in between. TBM is quickly becoming the winning edge in brake system design. With a revolutionary design TBM Brakes has lower drag and friction than competitors. Lower rolling resistance means quicker ET and better overall performance as well as longer pad life.
Included in this kit:
- (2) F3 Calipers 002-0192SSP-1 / 002-0192SSP-2
- (2) 12.500"x.500 rotors 3-1250500107963D
- (2) sets pads #1 compound standard track pads 6-0102W
- (2) Caliper mounting brackets 17-0080
- (2) Hats for 6 x 5.5 & 6x135mm Bolt Circle (GM Truck Late/Ford Truck Late)
- Mounting hardware kit
- (2) Rear Brake Lines
Ebrake is removed with this brake kit
For custom bolt pattern please contact us directly, otherwise OE factory bolt pattern will be issued.
14mm Wheel Studs
Please note: #85 compound pads need only be used in hard braking situations only. We do not recommend or suggest these for any situations where light braking or non extreme conditions are not present.
*Please use red Loctite on all rotor bolts*
We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.

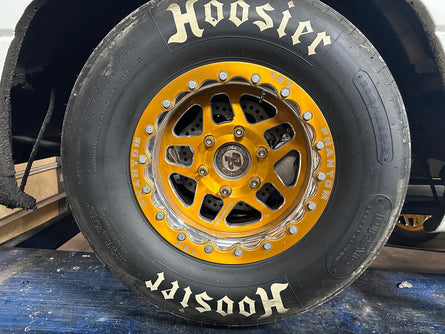

TBM Rear Drag Brakes are specifically designed to have maximum clearance for 15" double beadlocks offering best in class clearance they clear nearly every beadlock on the market. Use this reference diagram for clearance concerns.
